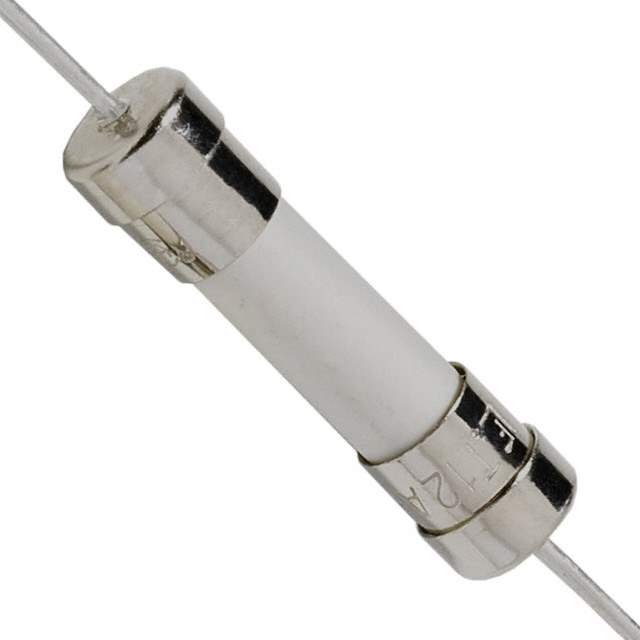

0477001.MXEP Real Image
Same model may have multiple batches, images only for reference.

0477001.MXEP

Part No 0477001.MXEP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE CERM 1A 500VAC 400VDC 5X20 / Axial Lead & Cartridge Fuses 5×20 mm > Time-Lag > 477 Series
Datasheet
0477001.MXEP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 1A
Voltage Rating - AC 500V
Voltage Rating - DC 400V
Response Time Slow Blow
Manufacturer Package 5mm x 20mm (Axial)
Mounting Style Through Hole
Breaking Capacity at Rated Voltage 100A AC, 1.5kA DC
Melting I2t 1.8
Approvals cULus, PSE, SEMKO, VDE
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.228" Dia x 0.886" L (5.80mm x 22.50mm)
DC Cold Resistance 0.1394 Ohms
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 808582-0477001.MXEP
Ultra Librarian 3D Model Ultra Librarian 0477001.MXEP CAD Model

Description

The Littelfuse Inc. 808582-0477001.MXEP is a slow blow ceramic cartridge fuse.

  • Voltage Rating: 500VAC, 400VDC
  • Mounting Style: Through hole
  • Packaging: Bulk
  • Manufacturer Pack Quantity: 1,000
  • Package Size: 5mm x 20mm (Axial)
  • Dimension: 5.80mm x 22.50mm
  • Operating Temperature Range: -55°C to 125°C
  • Current Rating: 1A
  • Breaking Capacity: 100A AC, 1.5kA DC
  • Applications: Power supply and equipment protection
