Same model may have multiple batches, images only for reference.

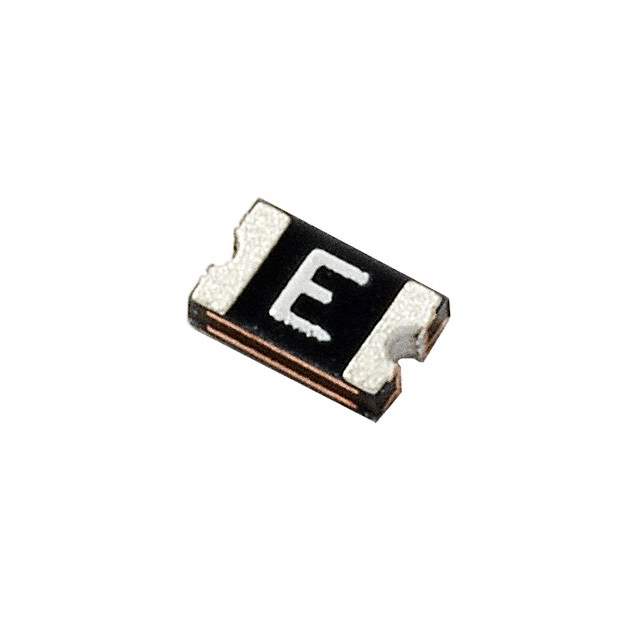

0805L010/24YR Real Image
Same model may have multiple batches, images only for reference.

0805L010/24YR

Part No 0805L010/24YR
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC 24V POLYFUSE 0805 0.10A
Datasheet
0805L010/24YR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 24V
Current - Max 100A
Current - Hold (Ih) (Max) 100mA
Current - Trip (It) 300mA
Time to Trip 1.5s
Resistance - Initial (Ri) (Min) 1.5 Ohm
Resistance - Post Trip (R1) (Max) 6 Ohm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.083" L x 0.053" W (2.10mm x 1.35mm)
Thickness (Max) 0.039" (1.00mm)
Approvals cURus, TUV
Win Source Part Number 1000395-0805L010/24YR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 0805L010/24YR CAD Model

Description

The Littelfuse Inc. 1000395-0805L010/24YR is a high-quality polymeric fuse designed to meet the needs of electronic components.

  • Packaging: Reel - TR
  • Dimension: 0.083" L x 0.053" W (2.10mm x 1.35mm)
  • Voltage Rating: 24V
  • Current Rating: 100A
  • Mounting: Surface Mounted
  • Operating Temperature Range: -40°C to 85°C
