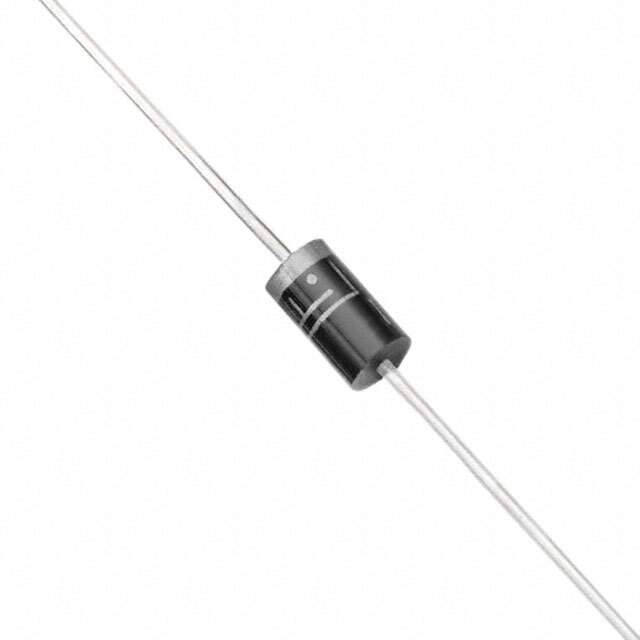

1.5KE550A Real Image
Same model may have multiple batches, images only for reference.

1.5KE550A

Part No 1.5KE550A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description Silicon Avalanche Diodes - 1500 Watt Axial Leaded Transient Voltage Suppressors
Datasheet
1.5KE550A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series 1.5KE
Packaging Reel - TR
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 468V
Minimum Breakdown Voltage 522.5V
Maximum Clamping Voltage 760V
Current - Peak Pulse (10/1000μs) 2A
Power - Peak Pulse 1500W (1.5kW)
Power Line Protection No
Applications General
Operating Temperature Range -55°C ~ 175°C (TJ)
Mounting Style Through Hole
Package DO-201AA, DO-27, Axial
Manufacturer Package DO-201
Win Source Part Number 1120821-1.5KE550A
Manufacturer Homepage www.littelfuse.com
Popularity Medium
Supply and Demand Status Limited
Family Name 1.5KE550A
Introduction Date March 21, 2004
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian 1.5KE550A CAD Model

Description

The Littelfuse Inc. 1120821-1.5KE550A is a zener type electronic component that is part of the 1.5KE series.

  • Voltage - Reverse Standoff (Typ): 468V
  • Current - Peak Pulse (10/1000μs): 2A
  • Power - Peak Pulse: 1500W (1.5kW)
  • Breakdown Voltage (Minimum): 522.5V
  • Clamping Voltage (Maximum): 760V
  • Popularity: Medium
  • Supply: Limited
  • Manufacturer: Littelfuse Inc.
  • Win Source Part Number: 1120821-1.5KE550A
  • Manufacturer Homepage: www.littelfuse.com
