Same model may have multiple batches, images only for reference.

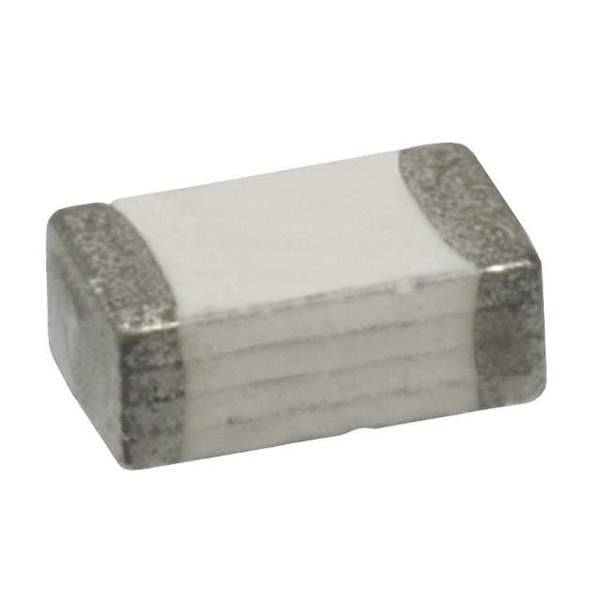

1206SFF700F/24-2 Real Image
Same model may have multiple batches, images only for reference.

1206SFF700F/24-2

Part No 1206SFF700F/24-2
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE BOARD MOUNT 7A 24VDC 1206
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 7A
Voltage Rating - DC 24V
Response Time Fast Blow
Manufacturer Package 1206
Mounting Style SMD
Breaking Capacity at Rated Voltage 45A
Melting I2t 1.75
Approvals UL
Temperature Range - Operating -55°C ~ 125°C
Parts Dimension 0.126" L x 0.063" W x 0.043" H (3.20mm x 1.60mm x 1.10mm)
DC Cold Resistance 0.011 Ohms
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 736048-1206SFF700F/24-2
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 1206SFF700F/24-2 CAD Model

Description

The Littelfuse Inc. 736048-1206SFF700F/24-2 is a board mount fuse designed to protect electronic circuits from overcurrent.

  • Response Time: fast blow
  • Voltage Rating: 24V DC
  • Packaging: reel
  • Mounting Style: SMD
  • DC Cold Resistance: 0.011 Ohms
  • Current Rating: 7A
  • Breaking Capacity @ Rated Voltage: 45A
  • Approvals: UL
  • Temperature Range: -55°C to 125°C
