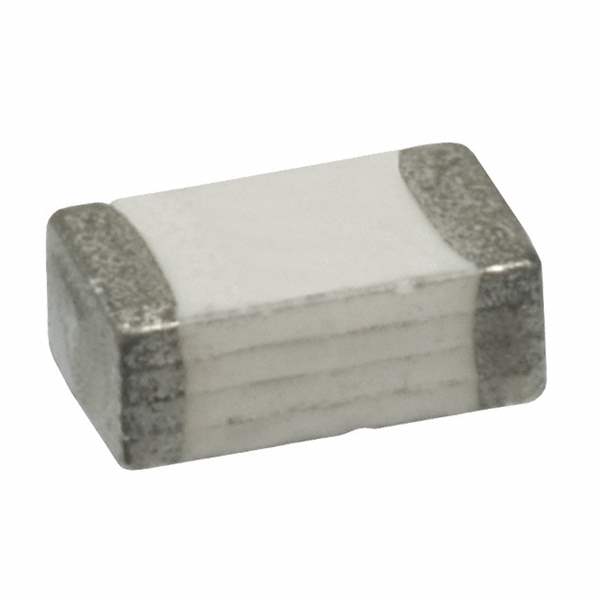

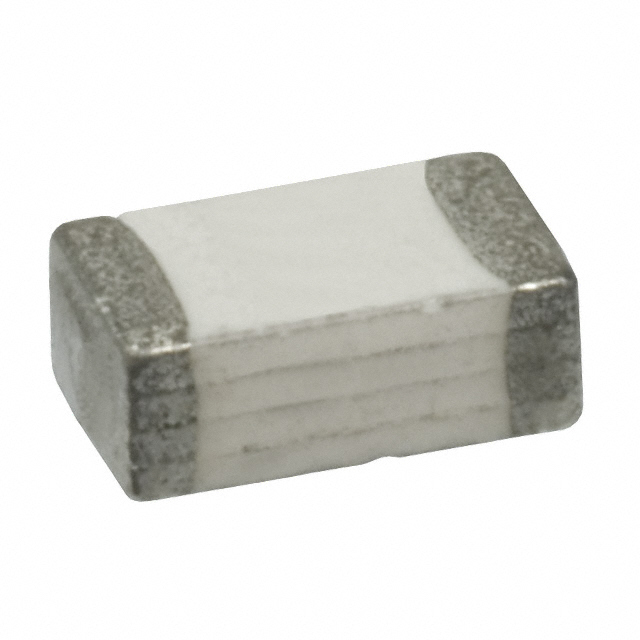

1206SFH100F/24-2 Littelfuse Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

1206SFH100F/24-2

Part No 1206SFH100F/24-2
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE BOARD MOUNT 10A 24VDC 1206
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit ProtectionFuses
Mfr Littelfuse Inc.
Series SFH
Part Status Obsolete
Mounting Type Surface Mount
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 10 A
Voltage Rating - DC 24 V
Response Time Fast Blow
Package / Case 1206 (3216 Metric)
Breaking Capacity @ Rated Voltage 100A
Melting I2t 9.0
Approval Agency UL
Operating Temperature -55°C ~ 125°C
Size / Dimension 0.126" L x 0.063" W x 0.046" H (3.20mm x 1.60mm x 1.17mm)
DC Cold Resistance 0.01 Ohms
Ultra Librarian 3D Model Ultra Librarian 1206SFH100F/24-2 CAD Model
