Same model may have multiple batches, images only for reference.

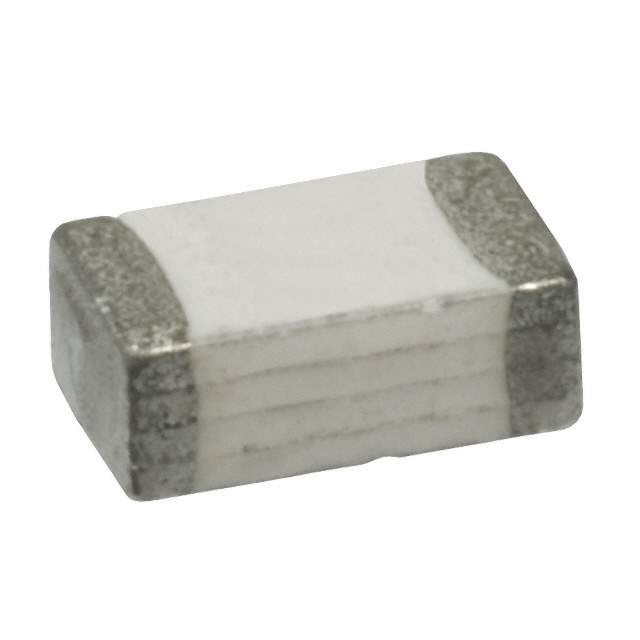

1206SFH200F/24-2 Real Image
Same model may have multiple batches, images only for reference.

1206SFH200F/24-2

Part No 1206SFH200F/24-2
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE BOARD MOUNT 20A 24VDC 1206
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Features 20 A AC 24 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 1206 (3216 Metric)
Manufacturer Littelfuse Inc.
Series SFH
Package Reel - TR
Part Status Obsolete
Operating Temperature Range -55°C ~ 125°C
Mounting Surface Mount
Package 1206 (3216 Metric)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Other Part Number RF1588-000, 1206SFH200F/24TR, 1206SFH200F/24-2-ND, 1206SFH200F/24DKR, 1206SFH200F/24CT, 1206SFH200F/24-2CT, 1206SFH200F/24TR-ND, 1206SFH200F/24CT-ND, 1206SFH200F/242, 1206SFH200F/24-2DKR, 1206SFH200F/24DKR-ND, 1206SFH200F242, 1206SFH200F/24-2TR
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 905194-1206SFH200F/24-2
Ultra Librarian 3D Model Ultra Librarian 1206SFH200F/24-2 CAD Model

Description

Littelfuse Inc.'s SFH series includes the 905194-1206SFH200F/24-2 model, which is an obsolete product.

  • Function: 20 A AC 24 V DC fuse designed for circuit protection
  • Mounting: surface mount
  • Mounted on: reel - TR
  • Package Size: 1206 (3216 Metric)
  • Operating Temperature Range: -55°C to 125°C
  • ECCN: EAR99
  • HTSUS: 8536.10.0040
