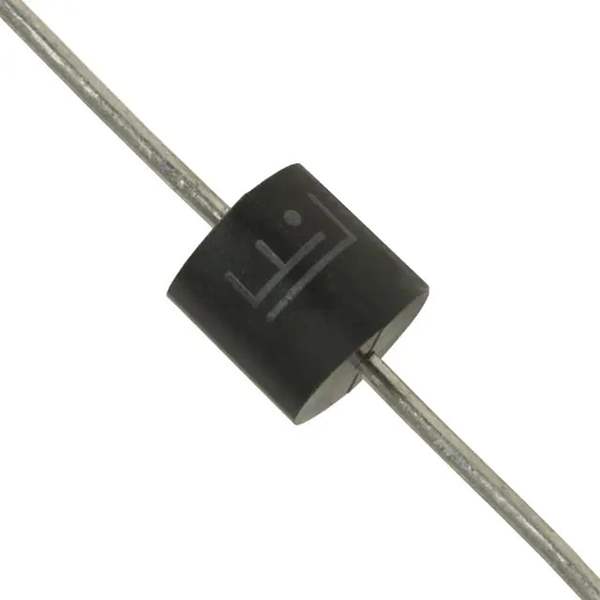

15KPA24CA Littelfuse Inc.
Same model may have multiple batches, images only for reference.

15KPA24CA

Part No 15KPA24CA
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 24VWM 40.7VC P600
Datasheet
15KPA24CA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Littelfuse Inc.
Series 15KPA
Package Tape & Reel (TR)
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 24V
Voltage - Breakdown (Min) 26.81V
Voltage - Clamping (Max) @ Ipp 40.7V
Current - Peak Pulse (10/1000µs) 371A
Power - Peak Pulse 15000W (15kW)
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency -
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case P600, Axial
Supplier Device Package P600
Base Product Number 15KPA
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1377337-15KPA24CA
Ultra Librarian 3D Model Ultra Librarian 15KPA24CA CAD Model

Description

The 1377337-15KPA24CA is a Zener diode TVS (Transient Voltage Suppressor) manufactured by Littelfuse Inc.

  • Series: 15KPA
  • Type: Zener
  • Package / Case: P600, Axial
  • Polarity: Bidirectional
  • Mounting Type: Through Hole
  • Voltage - Reverse Standoff (Typ): 24V
  • Voltage - Breakdown (Min): 26.81V
  • Voltage - Clamping (Max) (Vс): 40.7V
  • Current - Peak Pulse (10/1000µs): 371A
  • Power - Peak Pulse: 15kW
  • Applications: General Purpose
  • Operating Temperature: -55°C ~ 175°C (TJ)
