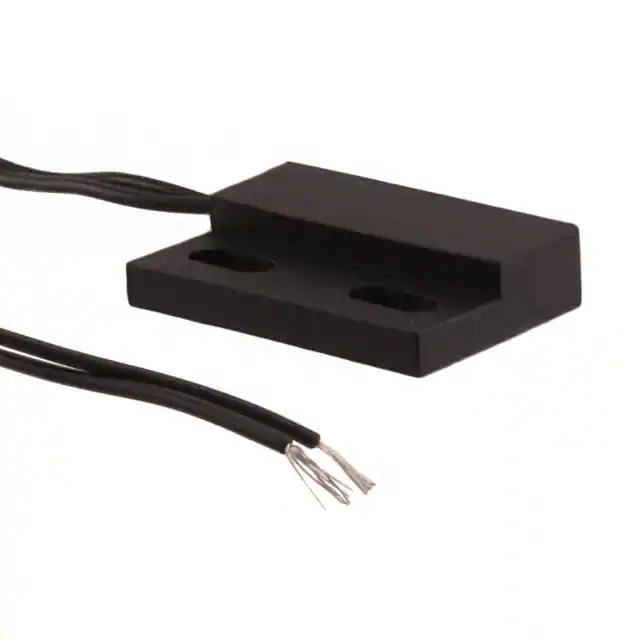

Same model may have multiple batches, images only for reference.
59150-010 Littelfuse Inc.
Same model may have multiple batches, images only for reference.

59150-010

Part No 59150-010
Manufacturer Littelfuse Inc.
Catalog Magnetic Sensors - Position, Proximity, Speed (Modules)
Description SENSOR REED SW SPST-NO W LEADS
Datasheet
59150-010 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Magnetic Sensors - Position, Proximity, Speed (Modules)
Mfr Littelfuse Inc.
Series 59150
Package Bulk
Product Status Active
Type Reed Switch
Output Type SPST-NO
Actuator Material Magnet
Termination Style Wire Leads
Voltage - Supply -
Must Operate 5.71mm
Must Release 20.32mm
Temperature Range - Operating -40°C ~ 105°C (TA)
Package / Case Flange Mount
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1375688-59150-010
Ultra Librarian 3D Model Ultra Librarian 59150-010 CAD Model

Description

The 1375688-59150-010 is a flange mount reed switch from the 59150 series manufactured by Littelfuse Inc.

  • Series: 59150
  • Sensor Type: Magnetic Sensor
  • Applications: Position, proximity, and speed sensing
  • Operating Temperature Range: -40°C to 105°C
  • Switch Configuration: SPST-NO (Single Pole, Single Throw - Normally Open)
  • Termination Style: Wire Leads
  • Actuator: Magnet Material
  • Must Operate Distance: 5.71mm
  • Must Release Distance: 20.32mm
  • Mounting Type: Flange Mount
  • Manufacturer: Littelfuse Inc.
  • Applications: Commonly used in various industries such as automotive, industrial automation, and consumer electronics for applications that require reliable magnetic sensing.
