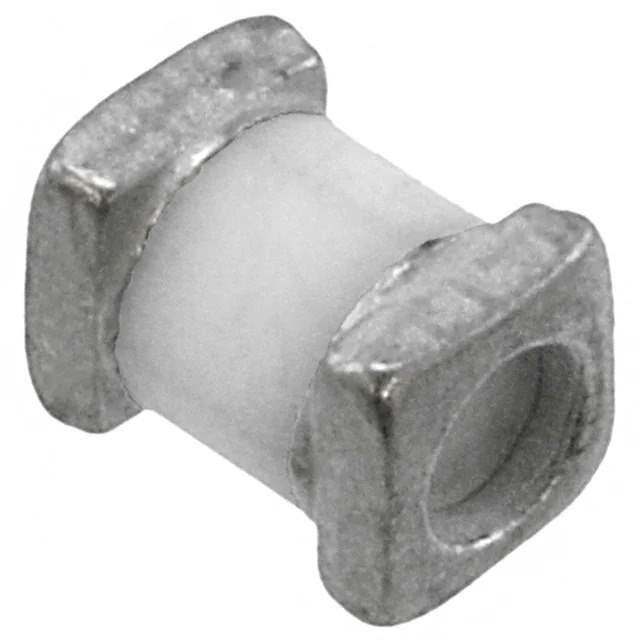

GTCS23-750M-R01-2 Real Image
Same model may have multiple batches, images only for reference.

GTCS23-750M-R01-2

Part No GTCS23-750M-R01-2
Manufacturer Littelfuse Inc.
Catalog Gas Discharge Tube Arresters (GDT)
Description GDT 75V 1KA 2 POLE SURFACE MOUNT / Gas Discharge Tube 75 V 1000A (1kA) ±20% 2 Pole Surface Mount
Datasheet
GTCS23-750M-R01-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Gas Discharge Tube Arresters (GDT)
Mfr Littelfuse Inc.
Series GT
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Voltage - DC Spark Over (Nom) 75 V
Impulse Discharge Current (8/20µs) 1000A (1kA)
Tolerance ±20%
Number of Poles 2
Fail Short No
Mounting Type Surface Mount
Package / Case 2-SMD Cylinder Square End
Base Product Number GTCS23
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.30.8000
California Prop 65 Warning Information
Win Source Part Number 845521-GTCS23-750M-R01-2
Ultra Librarian 3D Model Ultra Librarian GTCS23-750M-R01-2 CAD Model

Description

The 845521-GTCS23-750M-R01-2 is a gas discharge tube arrester (GDT) from the GT series. It is designed to provide circuit protection against voltage surges and transients.

  • DC Spark Over Voltage: 75 V
  • Impulse Discharge Current: 1000A
  • Package: surface mount
  • Packaging Compatibility: tape and reel
  • Manufacturer: Littelfuse Inc.
  • Product Status: active
  • Standard Package: 2,000 pcs
