Same model may have multiple batches, images only for reference.

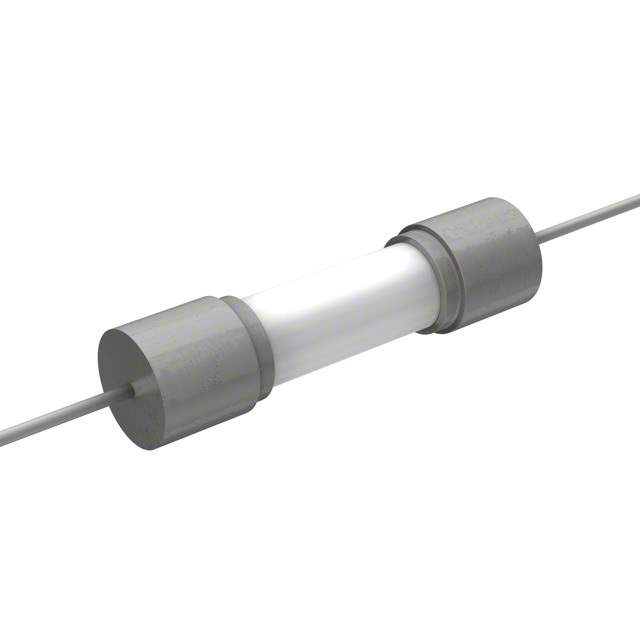

0234005.MXEP Real Image
Same model may have multiple batches, images only for reference.

0234005.MXEP

Part No 0234005.MXEP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE CERAMIC 5A 250VAC 5X20MM / 5 A 250 V AC DC Fuse Cartridge, Ceramic Through Hole 5mm x 20mm (Axial)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series 234
Package Bulk
Mounting Type Through Hole
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 5 A
Voltage Rating - AC 250 V
Response Time Medium Blow
Package / Case 5mm x 20mm (Axial)
Breaking Capacity @ Rated Voltage 200A
Melting I2t 20.645
Approval Agency CE, CSA, K-MARK, PSE, UL
Temperature Range - Operating -55°C ~ 125°C
Size / Dimension 0.228" Dia x 0.886" L (5.80mm x 22.50mm)
DC Cold Resistance 0.0214 Ohms
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0020
California Prop 65 Warning Information
Win Source Part Number 1349065-0234005.MXEP
Ultra Librarian 3D Model Ultra Librarian 0234005.MXEP CAD Model

Description

The Littelfuse Inc. 234 series fuse is a ceramic cartridge type with a through-hole mount.

  • Voltage Rating: 250V AC
  • Current Rating: 5A
  • Response Time: Medium Blow
  • Breaking Capacity: 200A @ Rated Voltage
  • DC Cold Resistance: 0.0214 Ohms
  • Melting I2t: 20.645
  • Size: 0.228" Dia x 0.886" L (5.80mm x 22.50mm)
  • Package/Case: 5mm x 20mm (Axial)
  • Operating Temperature: -55°C to 125°C
  • Approvals: CE, CSA, K-MARK, PSE, UL
