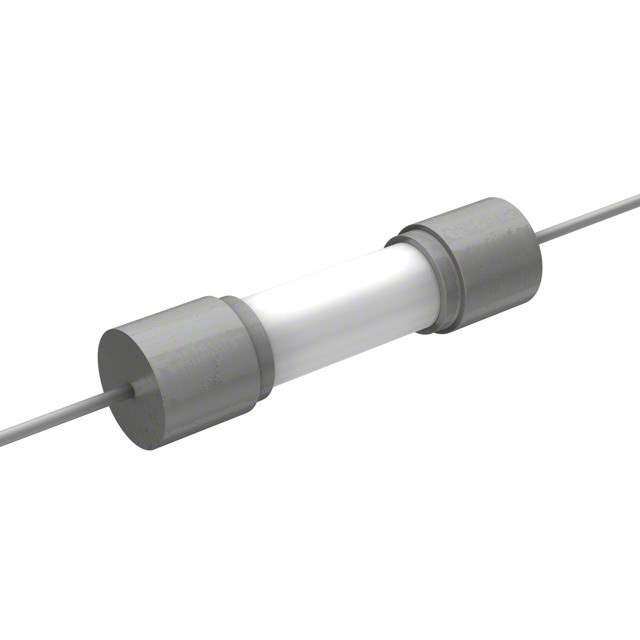

023406.3MXEP Real Image
Same model may have multiple batches, images only for reference.

023406.3MXEP

Part No 023406.3MXEP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE CERAMIC 6.3A 250VAC 5X20MM / 6.3 A 250 V AC DC Fuse Cartridge, Ceramic Through Hole 5mm x 20mm (Axial)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series 234
Package Bulk
Mounting Type Through Hole
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 6.3 A
Voltage Rating - AC 250 V
Response Time Medium Blow
Package / Case 5mm x 20mm (Axial)
Breaking Capacity @ Rated Voltage 200A
Melting I2t 37.685
Approval Agency CE, CSA, K-MARK, PSE, UL
Temperature Range - Operating -55°C ~ 125°C
Size / Dimension 0.228" Dia x 0.886" L (5.80mm x 22.50mm)
DC Cold Resistance 0.0168 Ohms
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0020
California Prop 65 Warning Information
Win Source Part Number 1349066-023406.3MXEP
Ultra Librarian 3D Model Ultra Librarian 023406.3MXEP CAD Model

Description

The Littelfuse Inc. 234 series fuse is a ceramic cartridge fuse designed for circuit protection applications.

  • Voltage Rating: 250V
  • Current Rating: 6.3A
  • Response Time: Medium Blow
  • Breaking Capacity: 200A @ Rated Voltage
  • Size/Dimension: 0.228" Dia x 0.886" L (5.80mm x 22.50mm)
  • Mounting Type: Through-Hole
  • DC Cold Resistance: 0.0168 Ohms
  • Standard Package: 1000
  • REACH: Unaffected
  • Approvals: CE, CSA, K-MARK, PSE, UL
