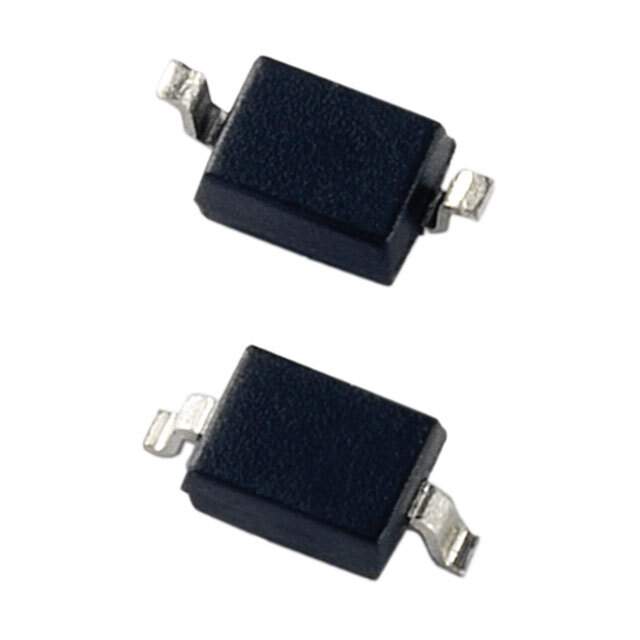

Same model may have multiple batches, images only for reference.

AQ4020-01FTG-C

Name: AQ4020-01FTG-C
Brand: Littelfuse Inc.
SKU: 1300930
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	AQ4020-01FTG-C
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Mfr	Littelfuse Inc.
Series	Automotive, AEC-Q101, AQ4020, SPA®
Package	Tape & Reel
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	3.3V (Max)
Voltage - Breakdown (Min)	3.5V
Voltage - Clamping (Max) @ Ipp	24.5V (Typ)
Current - Peak Pulse (10/1000µs)	30A (8/20µs)
Power - Peak Pulse	735W
Power Line Protection	No
Applications	Automotive, CAN, Ethernet, USB
Capacitance @ Frequency	2.5pF @ 1MHz
Temperature Range - Operating	-40°C ~ 150°C (TA)
Mounting	SMD (SMT)
Package / Case	SC-76, SOD-323
Supplier Device Package	SOD-323
Other Names	-AQ4020-01FTG-C,F10395TR,F10395CT,F10395DKR
Standard Package	3,000
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	1300930-AQ4020-01FTG-C
Ultra Librarian 3D Model	Ultra Librarian AQ4020-01FTG-C CAD Model

Alternative Products

Description

The AQ4020-01FTG-C from Littelfuse Inc. is a TVS diode designed for automotive, CAN, Ethernet, and USB applications that require a bidirectional channel with a voltage rating of 3.3V (Max).

Channel: Bidirectional
Voltage Rating: 3.3V (Max)
Packaging: Tape & reel
Standard Package: 3,000
Mounting: Surface mount technology
Voltage Breakdown: 3.5V
Power Peak Pulse: 735W
Current Peak Pulse: 30A (8/20µs)
Temperature Range: -40°C ~ 150°C (TA)
ECCN: EAR99
Manufacturer Part Numbers: -AQ4020-01FTG-C, F10395TR, F10395CT, and F10395DKR
