Same model may have multiple batches, images only for reference.

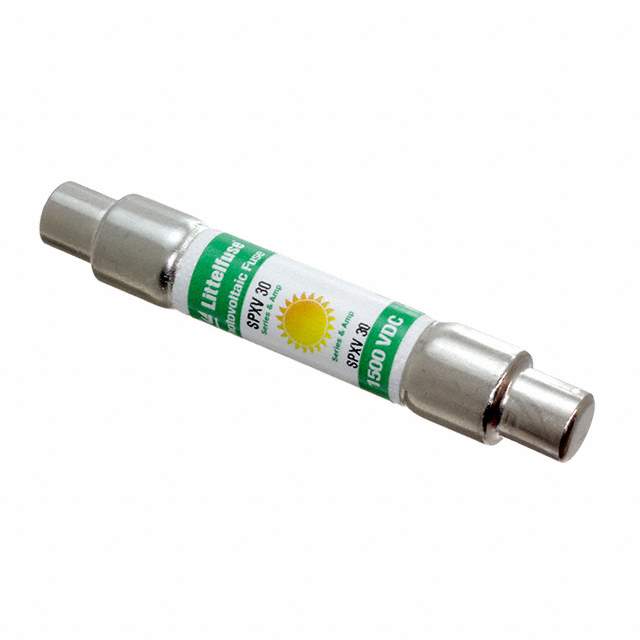

SPXV030.L Real Image
Same model may have multiple batches, images only for reference.

SPXV030.L

Part No SPXV030.L
Manufacturer Littelfuse Inc.
Catalog Electrical, Specialty Fuses
Datasheet
SPXV030.L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Electrical, Specialty Fuses
Mfr Littelfuse Inc.
Series POWR-GARD® SPXV
Product Status Obsolete
Mounting Type Holder
Fuse Type Cartridge
Current Rating (Amps) 30A
Voltage Rating - DC 1.5 kV
Applications Solar (Photovoltaic)
Approval Agency CE, UR
Breaking Capacity @ Rated Voltage 15kA
Package / Case Cartridge, Non-Standard
Dimension 0.540" Dia x 3.333" L (13.72mm x 84.65mm)
Melting I2t 3770
DC Cold Resistance 0.0052 Ohms
Other Names SPXV030.L,SPXV 30A,F11485,SPXV 30,-SPXV030.L
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
Win Source Part Number 1302280-SPXV030.L
Ultra Librarian 3D Model Ultra Librarian SPXV030.L CAD Model

Description

The Littelfuse Inc. 1302280-SPXV030.L is a cartridge-type electrical, specialty fuse designed for use in solar (photovoltaic) applications.

  • Series: POWR-GARD® SPXV
  • Voltage Rating: 1.5 kV
  • Breaking Capacity: 15kA @ rated voltage
  • Melting I2t: 3770
  • DC Cold Resistance: 0.0052 Ohms
  • Current Rating: 30A
  • Package/Case: non-standard cartridge
  • Status: obsolete
  • Approval Agency Ratings: CE and UR
