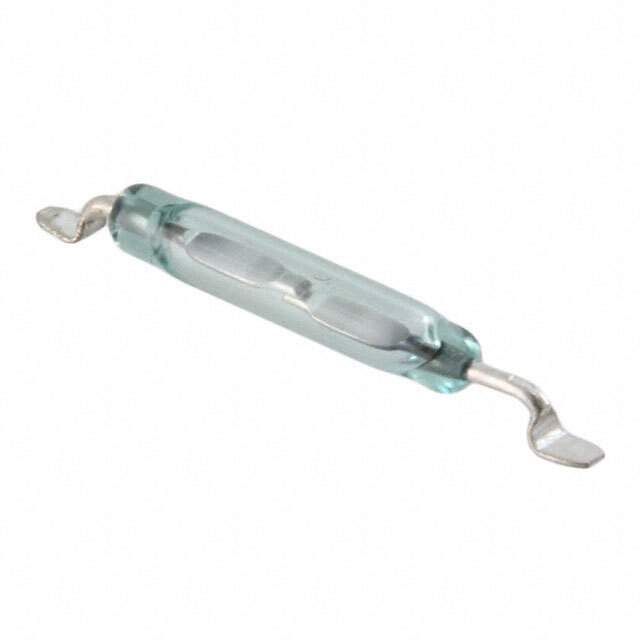

MDSM-10R-10-25

Part No MDSM-10R-10-25
Manufacturer Littelfuse Inc.
Catalog Magnetic Sensors - Linear, Compass (ICs)
Description SWITCH REED SPST-NO 350MA 140V / Glass Body Reed Switch SPST-NO 10 ~ 25AT Operate Range 10W 350mA (AC), 500mA (DC) 140 V Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Magnetic, Reed Switches
Mfr Littelfuse Inc.
Series MDSM-10
Package Tape & Reel
Type Glass Body Reed
Circuit SPST-NO
Operate Range 10 ~ 25AT
Current - Switching 350mA (AC), 500mA (DC)
Voltage - Switching AC 140 V
Voltage - Switching DC 200 V
Power - Rated 10W
Operate Time 0.5 ms
Release Time 0.1 ms
Mounting SMD (SMT)
Termination Style Gull Wing
Length - Overall 0.615" (15.62mm)
Size - Body 0.071" Dia x 0.400" L (1.80mm x 10.16mm)
Height Above Board 0.079" (2.00mm)
Temperature Range - Operating -40°C ~ 125°C
Capacitance 0.2 pF
Current - Carry 1A (DC)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8543.70.9860
Other Names HE662TR,HE662CT,1294-MDSM-10R-10-25,HE662DKR
Standard Package 3,000
Win Source Part Number 1109385-MDSM-10R-10-25
Ultra Librarian 3D Model Ultra Librarian MDSM-10R-10-25 CAD Model

Description

The MDSM-10R-10-25 is a glass body reed type magnetic switch manufactured by Littelfuse Inc.

  • Type: Reed, Magnetic Switch
  • Body: Glass
  • Termination Style: Gull Wing
  • Packaging: Tape and Reel
  • Operate Range: 10-25AT
  • Operate Time: 0.5ms
  • Release Time: 0.1ms
  • Circuit: SPST-NO
  • Power Rating: 10W
  • Current Carry: 1A (DC)
  • Switching Current: 350mA (AC), 500mA (DC)
  • Voltage Rating: 140V (AC), 200V (DC)
  • Overall Length: 0.615 inches (15.62mm)
  • Body Size: 0.071 inches diameter x 0.400 inches length (1.80mm x 10.16mm)
  • Operating Temperature: -40°C to 125°C

The MDSM-10R-10-25 is an ideal choice for use in magnetic and reed switches applications.
