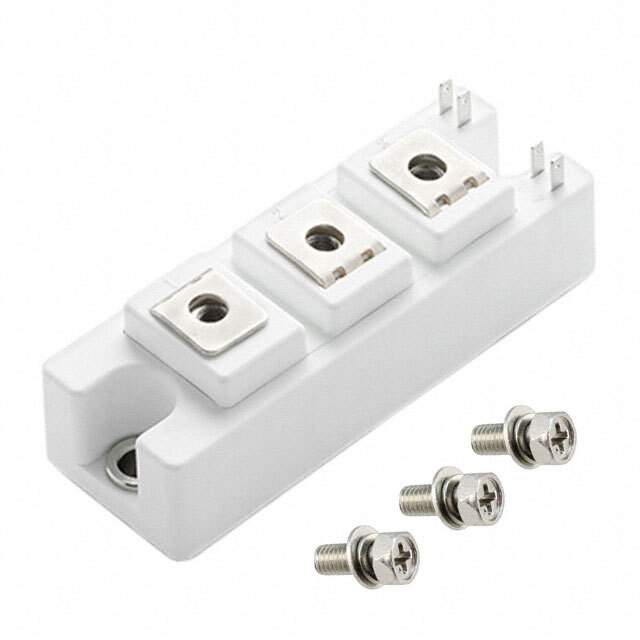

MG06100S-BN4MM Real Image
Same model may have multiple batches, images only for reference.

MG06100S-BN4MM

Part No MG06100S-BN4MM
Manufacturer Littelfuse Inc.
Catalog IGBTs - Modules
Description IGBT MODULE 600V 100A 330W S3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 13 Weeks
Features IGBT Module - Half Bridge 600 V 125 A 330 W Chassis Mount S3
Manufacturer Littelfuse Inc.
Package Bulk
Operating Temperature Range -40°C ~ 150°C (TJ)
Mounting Chassis Mount
Package S-3 Module
Case / Package S3
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Other Part Number -MG06100S-BN4MM, F6491
Quantity per package 50
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 884559-MG06100S-BN4MM
Ultra Librarian 3D Model Ultra Librarian MG06100S-BN4MM CAD Model

Description

The Littelfuse Inc. IGBT Module - Half Bridge 600 V 125 A 330 W Chassis Mount S3 is a high-performance electronic component designed for use in demanding applications.

  • Manufacturer: Littelfuse Inc.
  • Product Name: IGBT Module - Half Bridge 600 V 125 A 330 W Chassis Mount S3
  • Module Configuration: Half Bridge
  • Voltage: 600 V
  • Current: 125 A
  • Power: 330 W
  • Mounting Type: Chassis Mount
  • Package: S-3 Module
  • Mounting: Bulk
  • Operating Temperature Range: -40°C to 150°C
  • Category: Discrete Semiconductor Products
  • Supply and Demand Status: Limited
  • Estimated Production Lead Time: 13 weeks
  • ECCN: EAR99
  • HTSUS: 8541.29.0095
  • Package Quantity: 50 Pieces
  • MSL Level: 1 (Unlimited)
