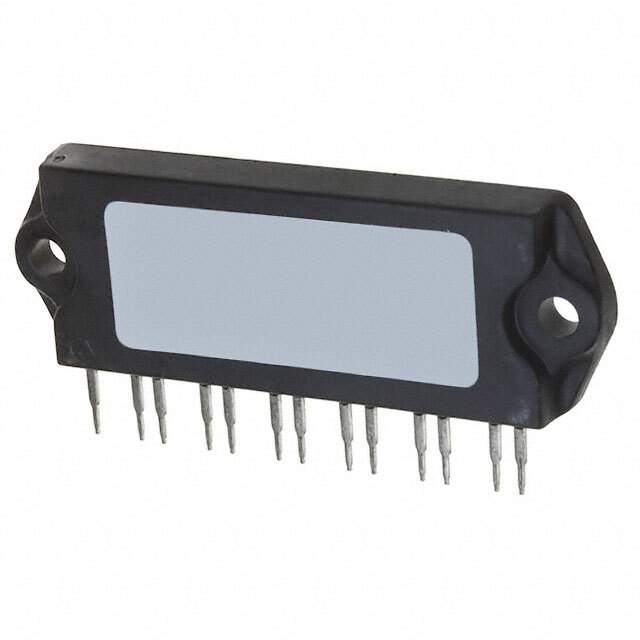

CPV364M4KPBF

Part No CPV364M4KPBF
Manufacturer Vishay
Catalog IGBTs - Modules
Description IGBT SIP MODULE 600V 13A IMS-2
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Status Active
Configuration Three Phase Inverter
VCEO Maximum Collector-Emitter Breakdown Voltage 600V
Maximum Current Collector 24A
Maximum Power Dissipation 63W
Collector-emitter saturation voltage(Max) 1.8V @ 15V, 24A
Collector Cut-off Current(Max) 250μA
Input Capacitance (Cies) @ Vce 1.6nF @ 30V
Input Standard
NTC Thermistor No
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package IMS-2
Win Source Part Number 202790-CPV364M4KPBF
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CPV364M4KPBF CAD Model

Description

Product Overview

The CPV364M4KPBF stands out as a robust and efficient voltage regulator, tailored for demanding electronic environments that require precise power management solutions.

Features and Benefits

  • Seamless integration with minimal footprint
  • Excellent thermal stability under load
  • Lead-free and RoHS compliant
  • Built-in protection mechanisms against voltage anomalies

Applications

  • High-efficiency power converters
  • Automotive and aerospace applications
  • Network and communication infrastructure
  • IoT devices
  • Instrumentation and control systems

This component is engineered with a priority on precision and stability, the CPV364M4KPBF ensures that power systems function smoothly across a variety of applications, minimizing energy losses and enhancing device longevity.
