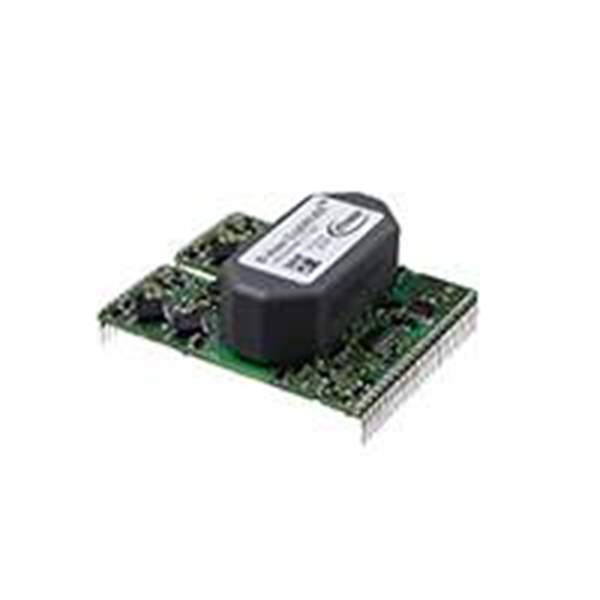

The Infineon Technologies 2ED300C17-ST is an IGBT (Insulated Gate Bipolar Transistor) module designed for high-power switching applications. This module combines the advantages of both MOSFETs and bipolar junction transistors, offering efficient and reliable performance in various power electronic systems.

Applications

• Motor drives
• Inverters
• Welding machines
• UPS (Uninterruptible Power Supplies)
• Renewable energy systems (solar inverters, wind turbines)

Features

• High blocking voltage
• Low on-state voltage
• Fast switching speed
• High short-circuit capability
• Isolated baseplate

Benefits

• Efficient power conversion
• Reduced energy losses
• Improved system reliability
• Simplified thermal management
• Compact system design

Additional Details

The 2ED300C17-ST IGBT module features a high blocking voltage, typically in the range of 1700V, enabling it to be used in high-voltage applications. The low on-state voltage reduces power dissipation and improves efficiency. The fast switching speed minimizes switching losses. The module is designed with a robust short-circuit capability to protect against overcurrent conditions. The isolated baseplate provides electrical isolation between the module and the heatsink, enhancing safety and simplifying thermal management. The module's package is designed for easy mounting and connection. Detailed specifications, including current ratings, switching characteristics, and thermal resistance, can be found in the Infineon datasheet. Proper gate drive circuitry and thermal management are crucial for optimal performance and reliability. The module is designed to meet industry standards for safety and performance.
