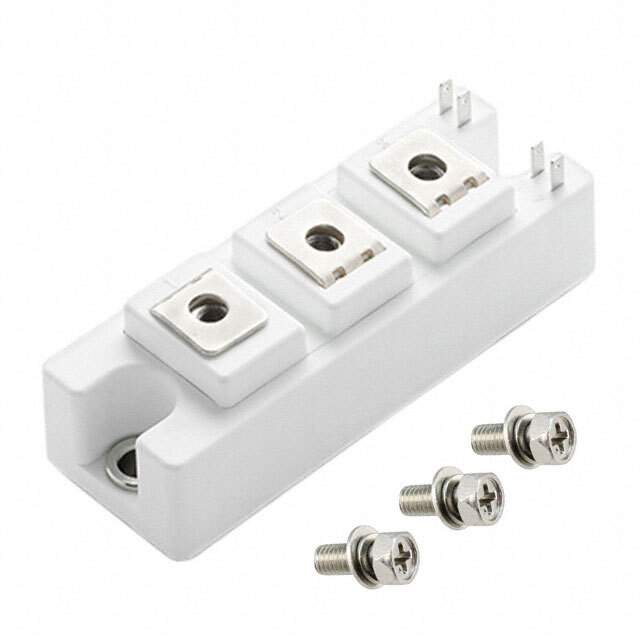

MG06100S-BR1MM Real Image
Same model may have multiple batches, images only for reference.

MG06100S-BR1MM

Part No MG06100S-BR1MM
Manufacturer Littelfuse Inc.
Catalog IGBTs - Modules
Description IGBT MODULE 600V 150A 625W S3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Features IGBT Module - Half Bridge 600 V 150 A 625 W Chassis Mount S3
Manufacturer Littelfuse Inc.
Package Bulk
Part Status Obsolete
Operating Temperature Range -40°C ~ 150°C (TJ)
Mounting Chassis Mount
Package S-3 Module
Case / Package S3
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Other Part Number F6490, -MG06100S-BR1MM
Quantity per package 50
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 884560-MG06100S-BR1MM
Ultra Librarian 3D Model Ultra Librarian MG06100S-BR1MM CAD Model

Description

The Littelfuse MG06100S-BR1MM is an obsolete IGBT module with a half bridge configuration and a voltage rating of 600V.

  • Manufacturer: Littelfuse
  • Product Name: MG06100S-BR1MM
  • Type: Obsolete IGBT Module
  • Configuration: Half Bridge
  • Voltage Rating: 600V
  • Current Rating: 150A
  • Power Rating: 625W
  • Mounting Type: Chassis Mount
  • Package: S-3 Package
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Operating Temperature Range: -40°C to 150°C (TJ)
  • ECCN: EAR99
  • HTSUS: 8541.29.0095
  • Quantity per Package: 50
  • MSL Level: 1 (unlimited)
