Same model may have multiple batches, images only for reference.

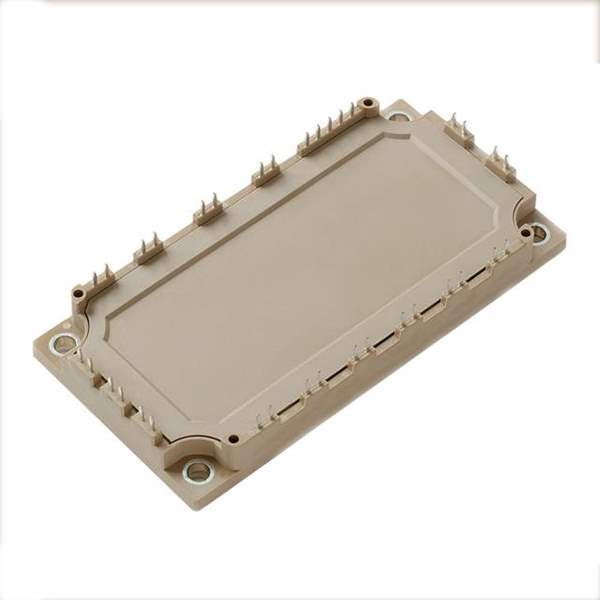

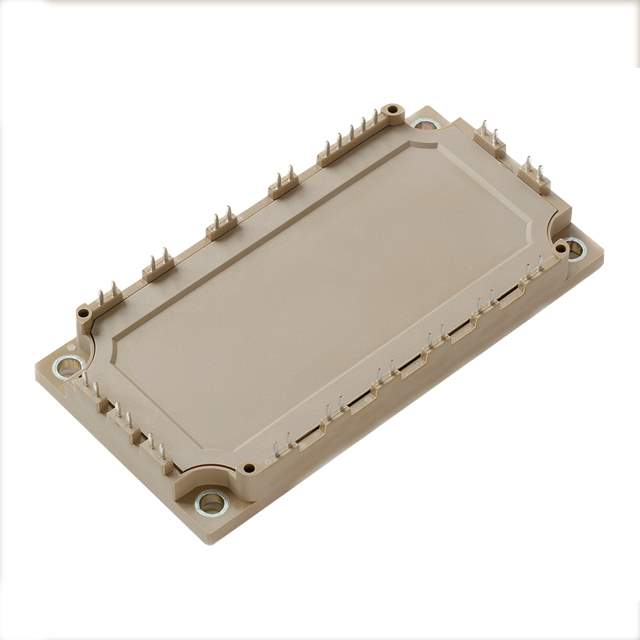

MG12150W-XN2MM Real Image
Same model may have multiple batches, images only for reference.

MG12150W-XN2MM

Part No MG12150W-XN2MM
Manufacturer Littelfuse Inc.
Catalog IGBTs - Modules
Description IGBT MOD 1200V 200A 625W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 13 Weeks
Features IGBT Module Trench Field Stop Three Phase Inverter 1200 V 200 A 625 W Chassis Mount Module
Manufacturer Littelfuse Inc.
Package Bulk
Operating Temperature Range -40°C ~ 125°C (TJ)
Mounting Chassis Mount
Package Module
Case / Package Module
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Other Part Number -MG12150W-XN2MM, F6697, MG12150W-XN2MM-ND
Quantity per package 1
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 884564-MG12150W-XN2MM
Ultra Librarian 3D Model Ultra Librarian MG12150W-XN2MM CAD Model

Description

The Littelfuse Inc. MG12150W-XN2MM is an IGBT module trench field stop three-phase inverter 1200 V 200 A 625 W chassis mount module.

  • Application: power supplies and voltage regulators
  • Popularity: medium
  • Supply and Demand Status: limited
  • Package: bulk
  • Pieces per Package: 1
  • Production Lead Time: 13 weeks
  • ECCN: EAR99
