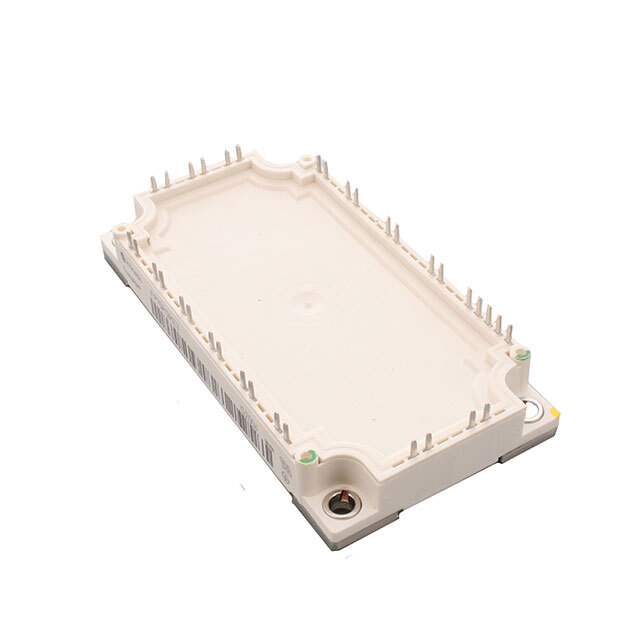

FP75R12KE3 Real Image
Same model may have multiple batches, images only for reference.

FP75R12KE3

Part No FP75R12KE3
Manufacturer Infineon Technologies
Catalog IGBTs - Modules
Description IGBT MODULE 1200V 75A
Datasheet
FP75R12KE3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies Industrial Power and Controls Americas
Status Active
IGBT Type NPT
Configuration Single
VCEO Maximum Collector-Emitter Breakdown Voltage 1200V
Maximum Current Collector 105A
Maximum Power Dissipation 355W
Collector-emitter saturation voltage(Max) 2.2V @ 15V, 75A
Collector Cut-off Current(Max) 5mA
Input Capacitance (Cies) @ Vce 5.3nF @ 25V
Input Standard
NTC Thermistor No
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting Chassis Mount
Case / Package Module
Win Source Part Number 32233-FP75R12KE3
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian FP75R12KE3 CAD Model

Description

The Infineon Technologies FP75R12KE3 is an electronic component that is used for discrete semiconductor products. This component is a balanced supply and demand product and is mounted using chassis mount technology.

  • Maximum Collector Current: 105A
  • VCEO Maximum Collector-Emitter Breakdown Voltage: 1200V
  • Maximum Power Dissipation: 355W
  • Collector-Emitter Saturation Voltage: 2.2V @ 15V, 75A
  • IGBT Type: Single Configuration
  • NTC Thermistor: No
