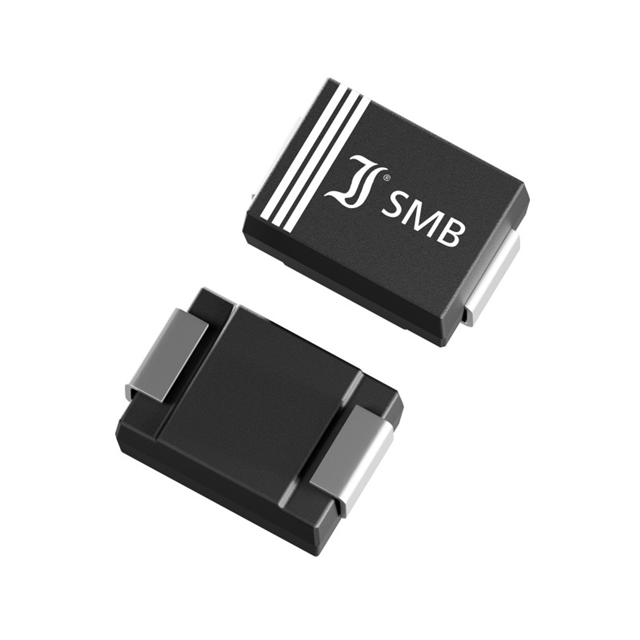

P6SMBJ20A Real Image
Same model may have multiple batches, images only for reference.

P6SMBJ20A

Part No P6SMBJ20A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 17.1VWM 27.7VC SMB
Datasheet
P6SMBJ20A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 17.1V
Minimum Breakdown Voltage 19V
Max Clamping Voltage 27.7V
Peak Pulse Current(Ippm) 22A
Power Dissipation - Pd 600W
Applications General Purpose
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package DO-214AA (SMBJ)
Win Source Part Number 1086070-P6SMBJ20A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian P6SMBJ20A CAD Model

Description

The 1086070-P6SMBJ20A is a surface mount type (SMD) Zener diode manufactured by Littelfuse Inc.

  • Mounting Type: SMD
  • Stand-off Voltage: 17.1V
  • Minimum Breakdown Voltage: 19V
  • Maximum Clamping Voltage: 27.7V
  • Peak Pulse Current: 22A
  • Power Dissipation: 600W
  • Case/Package: DO-214AA (SMBJ)
  • Direction: Unidirectional
  • Ideal for: general-purpose circuit protection applications
  • Packaging: reel
  • Temperature Range: -55 to 150 degrees Celsius (TJ)
  • Status: obsolete (EOL)
  • Popularity: medium
