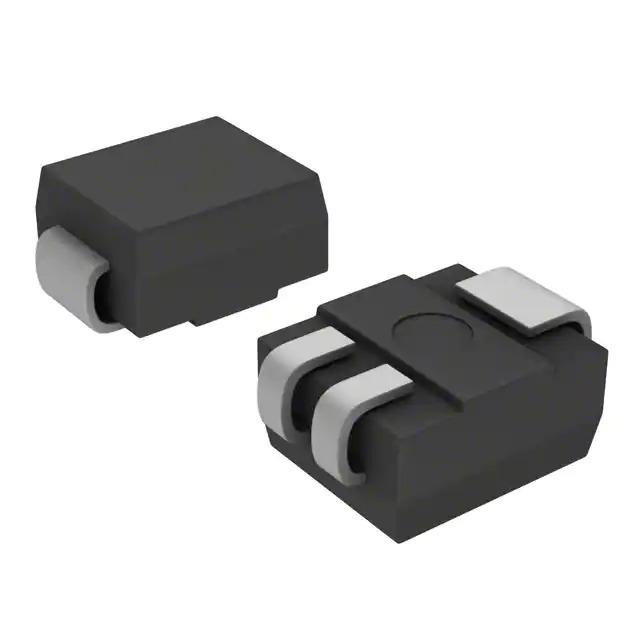

Same model may have multiple batches, images only for reference.

Q6N3RP

Name: Q6N3RP
Brand: Littelfuse Inc.
SKU: 1376700
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	Q6N3RP
Manufacturer	Littelfuse Inc.
Catalog	Triacs
Description	TRIAC SENS GATE 600V 1A DO214
Datasheet	Q6N3RP Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Thyristors - TRIACs
Mfr	Littelfuse Inc.
Series	-
Package	Tape & Reel
Product Status	Active
Triac Type	Logic - Sensitive Gate
Voltage - Off State	600 V
Current - On State (It (RMS)) (Max)	1 A
Voltage - Gate Trigger (Vgt) (Max)	1.3 V
Current - Non Rep. Surge 50, 60Hz (Itsm)	16.7A, 20A
Current - Gate Trigger (Igt) (Max)	10 mA
Current - Hold (Ih) (Max)	15 mA
Configuration	Single
Temperature Range - Operating	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AA, SMB (3 Leads), Compak
Supplier Device Package	DO-214 (Compak)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.30.0080
Win Source Part Number	1376700-Q6N3RP
Ultra Librarian 3D Model	Ultra Librarian Q6N3RP CAD Model

Alternative Products

Description

The 1376700-Q6N3RP is a surface mount TRIAC (Triode for Alternating Current) from Littelfuse Inc.

Operating Temperature Range: -40°C to 125°C
Gate Type: Logic-Sensitive
Off-State Voltage: 600V
On-State Current: 1A
Gate Trigger Voltage: 1.3V
Non-Repetitive Surge Current (50Hz): 16.7A
Non-Repetitive Surge Current (60Hz): 20A
Package: DO-214AA, SMB (3 Leads), Compak
Mounting: Surface Mount
