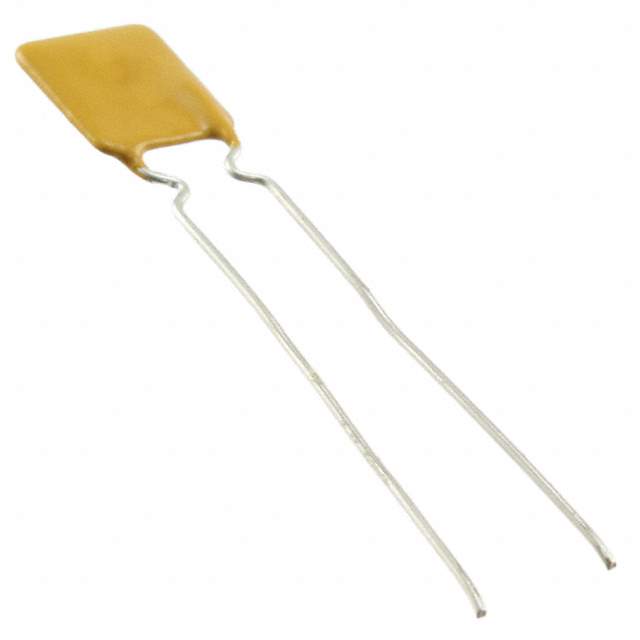

RGEF250-2 Real Image
Same model may have multiple batches, images only for reference.

RGEF250-2

Part No RGEF250-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH PTC RESET 2.5A / PTC Resettable Fuse 2.5A(hold) 4.7A(trip) 16VDC 100A 1W 5s 0.022Ohm Radial 8.9 X 3 X 12.8mm T/R
Datasheet
RGEF250-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series PolySwitch, RGEF
Packaging Reel package
Type Polymeric
Voltage - Max 16V
Current - Max 100A
Current - Hold (Ih) (Maximum) 2.5A
Current - Trip (It) 4.7A
Time to Trip 5s
Resistance - Initial (Ri) (Minimum) 22 mOhm
Resistance - Post Trip (R1) (Maximum) 53 mOhm
Operating Temperature Range -40°C ~ 85°C
Mounting Style Through Hole
Package Radial, Disc
Dimension 0.350" L x 0.118" W (8.90mm x 3.00mm)
Height - Seated (Maximum) 0.504" (12.80mm)
Lead Spacing 0.199" (5.05mm)
Approvals CSA, TUV, UL
Win Source Part Number 793187-RGEF250-2
Popularity Medium
Supply and Demand Status Limited
Family Name RGEF
Introduction Date November 09, 2015
ECCN EAR99
Country of Origin China
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian RGEF250-2 CAD Model

Description

The Littelfuse Inc. electronic component with Win Source Part Number 793187-RGEF250-2 is a polymeric type circuit protection component that has a maximum voltage of 16V and a maximum current of 100A.

  • Maximum Voltage: 16V
  • Maximum Current: 100A
  • Current Trip (It): 4.7A
  • Time to Trip: 5s
  • Current Hold (Ih) (Maximum): 2.5A
