The S6010LS3 is a standard Silicon Controlled Rectifier (SCR) manufactured by Littelfuse Inc. It is designed for medium power switching applications that require reliable and efficient control. This SCR offers robust performance and is suitable for a variety of industrial and commercial applications.

Applications:

• Motor speed controls (e.g., fan speed control, power tools)
• Light dimming circuits
• AC power switching
• Voltage regulation
• Solid-state relays

Features:

• High surge current capability
• Repetitive peak off-state voltage of 600V
• RoHS compliant
• Glass passivated junction for improved reliability

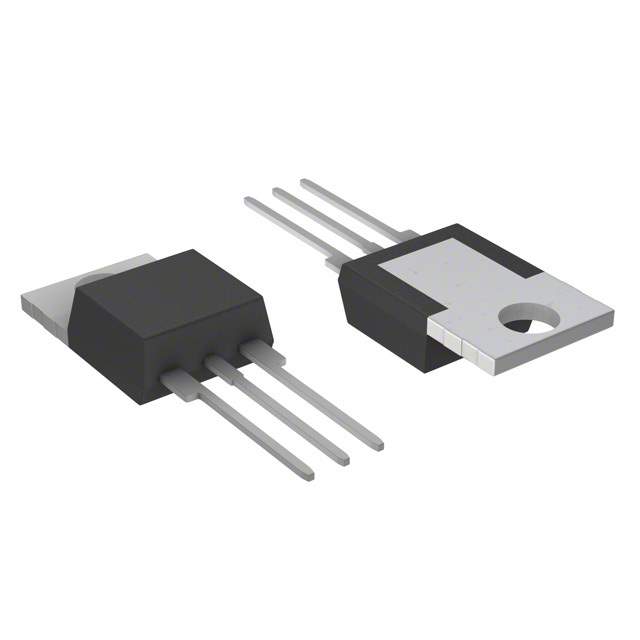

• Available in a through-hole TO-220AB package

Benefits:

• Provides reliable switching in medium power applications.
• Offers protection against voltage transients with its high blocking voltage.
• Ensures environmental compliance with its RoHS certification.
• Improves long-term reliability due to the glass passivated junction.
• Robust through-hole package allows for secure mounting.

Technical Specifications:

The S6010LS3 has a repetitive peak off-state voltage (VDRM/VRRM) of 600V. The on-state RMS current (IT(RMS)) is 10A. The peak surge current (ITSM) is rated at 100A for a half-cycle sine wave. The gate trigger current (IGT) is typically 200 µA. The holding current (IH) is 6mA. The operating junction temperature range is -40°C to +125°C. Forward voltage drop at rated current is typically 1.6V. The gate trigger voltage (VGT) is typically 0.8V.
