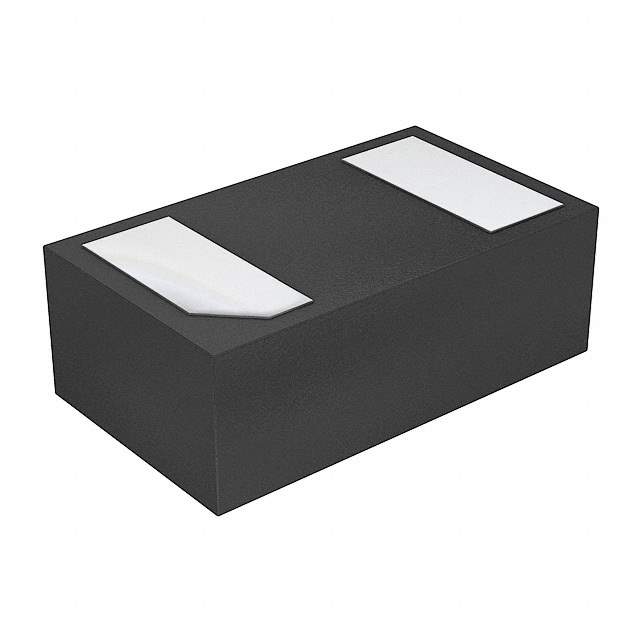

SESD0402X1UN-0030-088 Real Image
Same model may have multiple batches, images only for reference.

SESD0402X1UN-0030-088

Part No SESD0402X1UN-0030-088
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description ESD Suppressor Diode TVS Uni-Dir 7V Automotive 2-Pin XDFN T/R / TVS DIODE 7VWM 13VC DFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 7V (Max)
Minimum Breakdown Voltage 8.8V (Typ)
Max Clamping Voltage 13V (Typ)
Peak Pulse Current(Ippm) 2.5A (8/20μs)
Applications Automotive, HDMI
Capacitance @ Frequency 0.3pF @ 3GHz
Temperature Range - Operating -55°C to 125°C (TA)
Mounting SMD (SMT)
Case / Package 0402/2DFN (1x0.60)
Win Source Part Number 1095189-SESD0402X1UN-0030-088
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name SESD0402X1UN-0030-088
Introduction Date December 26, 2014
ECCN EAR99
Country of Origin China
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian SESD0402X1UN-0030-088 CAD Model

Description

The Littelfuse SESD0402X1UN-0030-088 is a Zener diode that provides protection against transient voltage in electronic circuits.

  • Type: Zener Diode
  • Function: Transient Voltage Protection
  • Configuration: Unidirectional
  • Operating Temperature: -55°C to 125°C
  • Mounting Type: Surface Mount
  • Packaging: Reel (3000 pieces)
  • Applications: Automotive, HDMI
