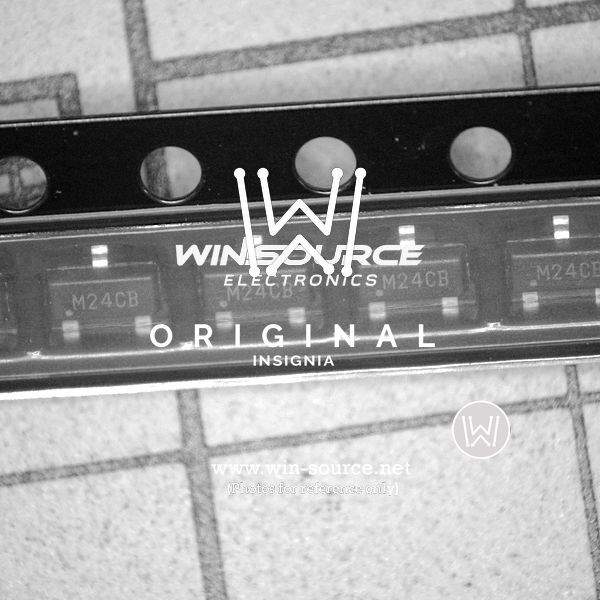

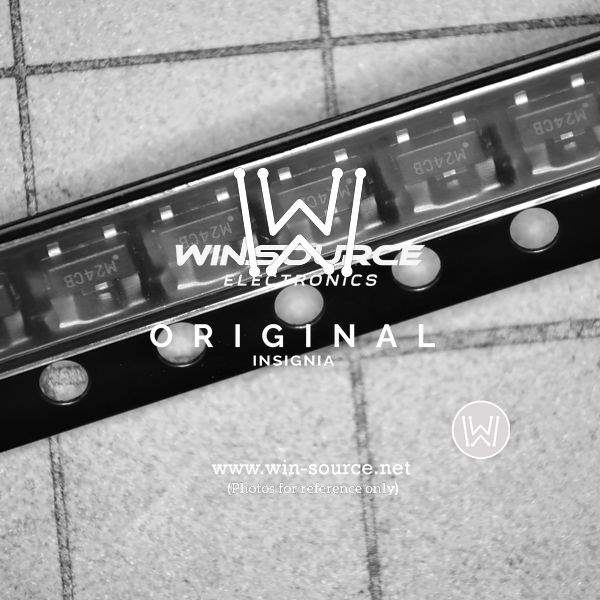

SM24CANB-02HTG Littelfuse Inc. SM24CANB-02HTG real image11062 SM24CANB-02HTG Real Image1 SM24CANB-02HTG Real Image2 SM24CANB-02HTG Real Image3 SM24CANB-02HTG Real Image4
Same model may have multiple batches, images only for reference.
SM24CANB-02HTG Littelfuse Inc. SM24CANB-02HTG real image11062 SM24CANB-02HTG Real Image1 SM24CANB-02HTG Real Image2 SM24CANB-02HTG Real Image3 SM24CANB-02HTG Real Image4
SM24CANB-02HTG Littelfuse Inc. SM24CANB-02HTG real image11062 SM24CANB-02HTG Real Image1 SM24CANB-02HTG Real Image2 SM24CANB-02HTG Real Image3 SM24CANB-02HTG Real Image4
Same model may have multiple batches, images only for reference.

SM24CANB-02HTG

Part No SM24CANB-02HTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 24VWM 50VC SOT23-3
Datasheet
SM24CANB-02HTG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 2
STAND-OFF Voltage (Vwm) 24V (Max)
Minimum Breakdown Voltage 26.7V
Max Clamping Voltage 50V
Peak Pulse Current(Ippm) 10A (8/20μs)
Power Dissipation - Pd 500W
Applications Automotive, CAN
Capacitance @ Frequency 30pF @ 1MHz
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SOT-23-3
Win Source Part Number 1096966-SM24CANB-02HTG
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian SM24CANB-02HTG CAD Model

Description

The Littelfuse SM24CANB-02HTG is a Zener diode with a stand-off voltage (Vwm) of 24V (Max) and a minimum breakdown voltage of 26.7V.

  • Maximum Clamping Voltage: 50V
  • Peak Pulse Current (Ippm): 10A (8/20μs)
  • Power Dissipation: 500W
  • Temperature Range: -40°C to 125°C
  • Supply and Demand Status: sufficient
