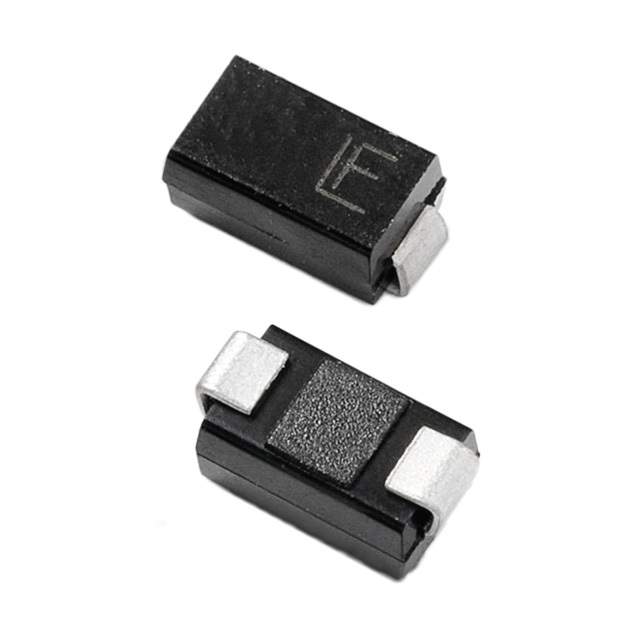

Same model may have multiple batches, images only for reference.

SMAJ33CA

Name: SMAJ33CA
Brand: Littelfuse Inc.
SKU: 327600
Availability: InStock
Rating: 4.85 (109 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SMAJ33CA
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 33VWM 53.3VC SMA
Datasheet	SMAJ33CA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Littelfuse Inc.
Packaging	Reel - TR
Status	Active
Type	Zener
Bidirectional Channels	1
STAND-OFF Voltage (Vwm)	33V
Minimum Breakdown Voltage	36.7V
Max Clamping Voltage	53.3V
Peak Pulse Current(Ippm)	7.5A
Power Dissipation - Pd	400W
Applications	General Purpose
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	SMD (SMT)
Case / Package	DO-214AC (SMA)
Win Source Part Number	084122-SMAJ33CA
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Application Field	Used in Computers & Computer Peripherals, Communications & Networking, Consumer Electronics, Industrial
Package	Tape & Reel (TR);Cut Tape (CT)
Product Status	Active
Bidirectional Channels	2
Voltage - Reverse Standoff (Typ)	33V
Voltage - Breakdown (Min)	36.7V
Voltage - Clamping (Max) @ Ipp	53.3V
Current - Peak Pulse (10/1000µs)	7.5A
Power - Peak Pulse	400W
Power Line Protection	Yes
Operating Temperature	-55°C ~ 150°C
Grade	-
Mounting Type	Surface Mount
Package / Case	DO-214AC, SMA
Supplier Device Package	DO-214AC (SMAJ)
Package	Strip
Package / Case	DO-214AC (SMA)
Ultra Librarian 3D Model	Ultra Librarian SMAJ33CA CAD Model

Description

The Littelfuse Inc. electronic component (product) with the Win Source Part Number 084122-SMAJ33CA is a Zener type device used in general-purpose applications.

Channel: Bidirectional
Case/Package: DO-214AC (SMA)
STAND-OFF voltage (Vwm): 33V
Minimum breakdown voltage: 36.7V
Maximum clamping voltage: 53.3V
Peak pulse current(Ippm): 7.5A
Power dissipation - Pd: 400W
Alternative parts: SMA6J33CA-TR, SMAJ33C, P4SMA39C R3
Supply and demand status: Balance
Applications: Computers & computer peripherals, communications & networking, consumer electronics, and industrial applications
