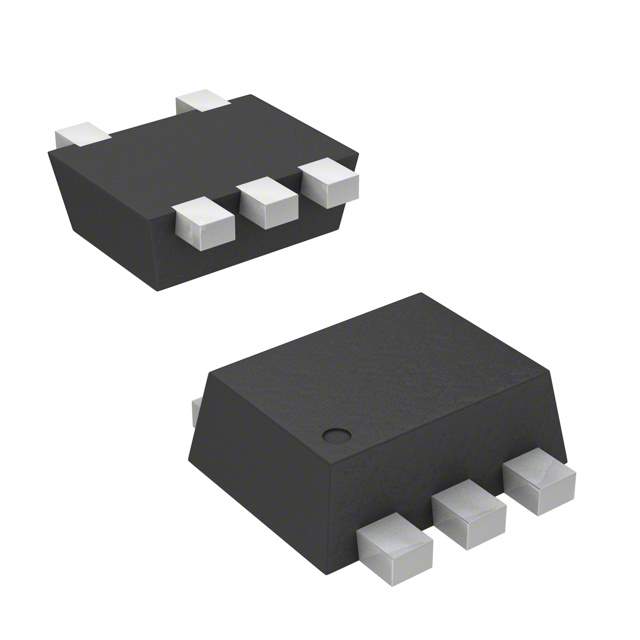

SP1001-02XTG

Name: SP1001-02XTG
Brand: Littelfuse Inc.
SKU: 517921
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SP1001-02XTG
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 5.5VWM 13VC SOT553
Datasheet	SP1001-02XTG Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Littelfuse Inc.
Packaging	Reel - TR
Status	Active
Type	Zener
Unidirectional Channels	2
STAND-OFF Voltage (Vwm)	5.5V (Max)
Minimum Breakdown Voltage	7V
Max Clamping Voltage	13V
Peak Pulse Current(Ippm)	2A (8/20μs)
Applications	General Purpose
Temperature Range - Operating	-40°C to 125°C (TJ)
Mounting	SMD (SMT)
Case / Package	SOT-553
Win Source Part Number	1101142-SP1001-02XTG
Popularity	Medium
Supply and Demand Status	Sufficient
Ultra Librarian 3D Model	Ultra Librarian SP1001-02XTG CAD Model

Alternative Products

Description

The Littelfuse Inc. 1101142-SP1001-02XTG is a Zener type circuit protection component with a SMD (SMT) mounting and 2 unidirectional channels.

Type: Zener
Mounting: SMD (SMT)
Unidirectional Channels: 2
Application: General Purpose
Package: SOT-553
Stand-off Voltage: 5.5V (Max)
Minimum Breakdown Voltage: 7V
Max Clamping Voltage: 13V
Peak Pulse Current(Ippm): 2A (8/20μs)
Temperature Range: -40°C to 125°C (TJ)
Status: Active
Power Dissipation - Pd: Not Specified
Equivalent to: NXP PESD6V0L2UU and uClamp0502T.TCT
Popularity: Medium
Supply and Demand Status: Sufficient
