Same model may have multiple batches, images only for reference.

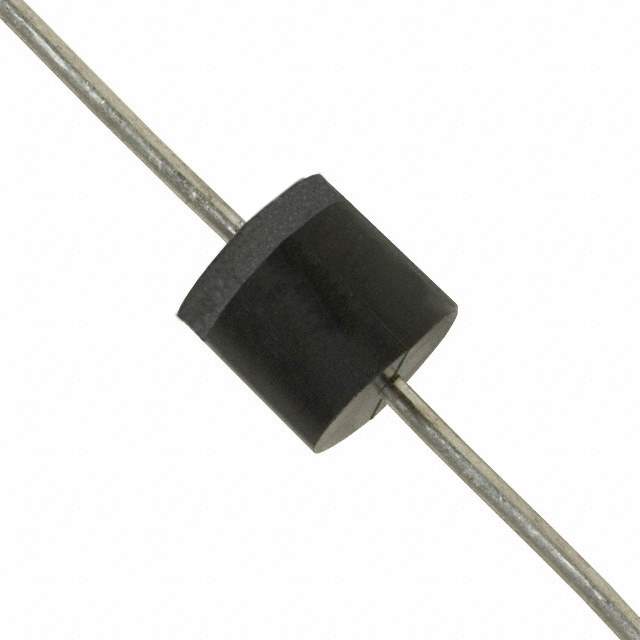

TP5KP40A Real Image
Same model may have multiple batches, images only for reference.

TP5KP40A

Part No TP5KP40A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 40VWM 64.5VC P600 / 64.5V Clamp 79.1A Ipp Tvs Diode Through Hole P600
Datasheet
TP5KP40A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Littelfuse Inc.
Series Automotive, AEC-Q101, TP5KP
Package Tape & Reel (TR),Cut Tape (CT)
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 40V
Voltage - Breakdown (Min) 44.4V
Voltage - Clamping (Max) @ Ipp 64.5V
Current - Peak Pulse (10/1000µs) 79.1A
Power - Peak Pulse 5000W (5kW)
Power Line Protection No
Applications Automotive
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case P600, Axial
Supplier Device Package P600
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names F7627CT,F7627TR,-TP5KP40A
Standard Package 800
Win Source Part Number 1100721-TP5KP40A
Ultra Librarian 3D Model Ultra Librarian TP5KP40A CAD Model

Description

The Littelfuse Inc. 1100721-TP5KP40A is a TVS-Diode circuit protection component that belongs to the Automotive, AEC-Q101, TP5KP series.

  • Component Type: Zener
  • Packaging: tape and reel (TR) and cut tape (CT)
  • Application: automotive applications
  • Standard Package: 800
  • Voltage-Reverse Standoff: 40V
  • Voltage-Breakdown: 44.4V
  • Voltage-Clamping @ Ipp: 64.5V
  • Peak Pulse Power: 5000W (5kW)
  • Current-Peak Pulse (10/1000µs): 79.1A
  • Mounting Type: Through-hole
  • Package/Case: P600, Axial
  • Operating Temperature Range: -55°C to 150°C (TJ)
