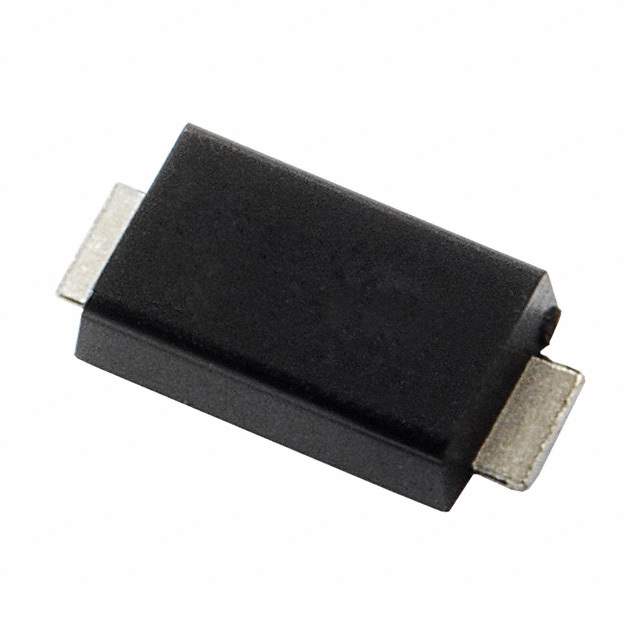

TPSMA6L75A Real Image
Same model may have multiple batches, images only for reference.

TPSMA6L75A

Part No TPSMA6L75A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description Transient Voltage Suppression Diodes
Datasheet
TPSMA6L75A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series Automotive, AEC-Q101, TPSMA6L
Packaging Reel - TR
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 75V
Minimum Breakdown Voltage 83.3V
Maximum Clamping Voltage 121V
Current - Peak Pulse (10/1000μs) 5A
Power - Peak Pulse 600W
Power Line Protection No
Applications Automotive
Operating Temperature Range -50°C ~ 150°C (TJ)
Mounting SMD
Package DO-221AC, SMA Flat Leads
Manufacturer Package DO-221AC
Win Source Part Number 1273771-TPSMA6L75A
Manufacturer Homepage www.littelfuse.com
Popularity Medium
Supply and Demand Status Balance
Family Name TPSMA6L75A
Introduction Date December 11, 2012
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian TPSMA6L75A CAD Model

Description

The 1273771-TPSMA6L75A is a Zener diode from Littelfuse Inc. This Zener diode is used in automotive applications and belongs to the TPSMA6L series.

  • Application: Automotive
  • Reverse Standoff Voltage: 75V
  • Peak Pulse Current: 5A
  • Power Dissipation: 600W
  • Minimum Breakdown Voltage: 83.3V
  • Mounting: SMD
  • Package: DO-221AC (SMA Flat Leads)
