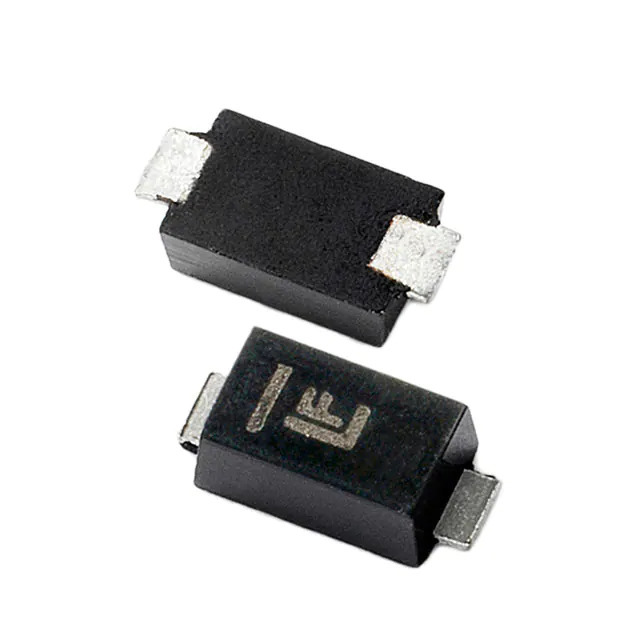

Same model may have multiple batches, images only for reference.
TPSMF4L64A Littelfuse Inc.
Same model may have multiple batches, images only for reference.

TPSMF4L64A

Part No TPSMF4L64A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 64VWM 103VC SOD123FL / 103V Clamp 3.9A Ipp Tvs Diode Surface Mount SOD-123F
Datasheet
TPSMF4L64A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Littelfuse Inc.
Series Automotive, AEC-Q101, TPSMF4L
Package Tape & Reel
Product Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 64V
Voltage - Breakdown (Min) 71.1V
Voltage - Clamping (Max) @ Ipp 103V
Current - Peak Pulse (10/1000µs) 3.9A
Power - Peak Pulse 400W
Power Line Protection No
Applications Automotive
Capacitance @ Frequency -
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case SOD-123F
Supplier Device Package SOD-123F
Base Product Number TPSMF4L
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1362225-TPSMF4L64A
Ultra Librarian 3D Model Ultra Librarian TPSMF4L64A CAD Model

Description

The 1362225-TPSMF4L64A is a surface mount transient voltage suppressor (TVS) diode manufactured by Littelfuse Inc. It is part of the TPSMF4L series, which is automotive and AEC-Q101 compliant.

  • Voltage Rating: 64V
  • Breakdown Voltage: 71.1V
  • Clamping Voltage: 103V @ 3.9A
  • Power Rating: 400W
  • Automotive: Yes
  • Channel: Unidirectional
  • Mounting Type: Surface Mount
