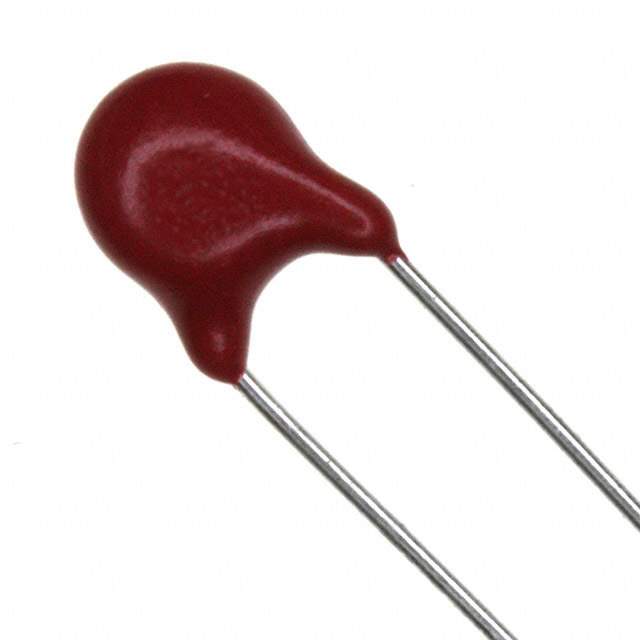

V47ZA05P Real Image
Same model may have multiple batches, images only for reference.

V47ZA05P

Part No V47ZA05P
Manufacturer Littelfuse Inc.
Catalog TVS - Varistors, MOVs
Description VARISTOR 47V 100A DISC 5MM
Datasheet
V47ZA05P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Bulk
Status Active
Varistor Voltage (Min) 42.3V
Varistor Voltage (Typ) 47V
Varistor Voltage (Max) 51.7V
Current - Surge 100A
Energy 0.40J
Number of Circuits 1
Maximum AC Volts 30VAC
Maximum DC Volts 38VDC
Capacitance @ Frequency 585pF @ 1MHz
Temperature Range - Operating -55°C to 85°C (TA)
Mounting Through Hole
Dimension Disc 5mm
Win Source Part Number 099560-V47ZA05P
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian V47ZA05P CAD Model

Description

The Littelfuse Inc. V47ZA05P is a circuit protection product that belongs to the Varistors family.

  • Popularity Rating: Medium
  • Supply and Demand Status: Sufficient
  • Manufacturer: Littelfuse Inc.
  • Win Source Part Number: 099560-V47ZA05P
  • Applications: Lighting systems, power supplies, and motor control
  • Capacitance @ 1MHz: 585pF @ 1MHz
  • Varistor Voltage Range: 42.3V to 51.7V
  • Maximum Surge Current: 100A
  • Maximum AC Volts: 30VAC
  • Maximum DC Volts: 38VDC
  • Energy Rating: 0.40J
  • Operating Temperature: -55°C to 85°C (TA)
  • Mounting: Through Hole
  • Disc Size: 5mm
