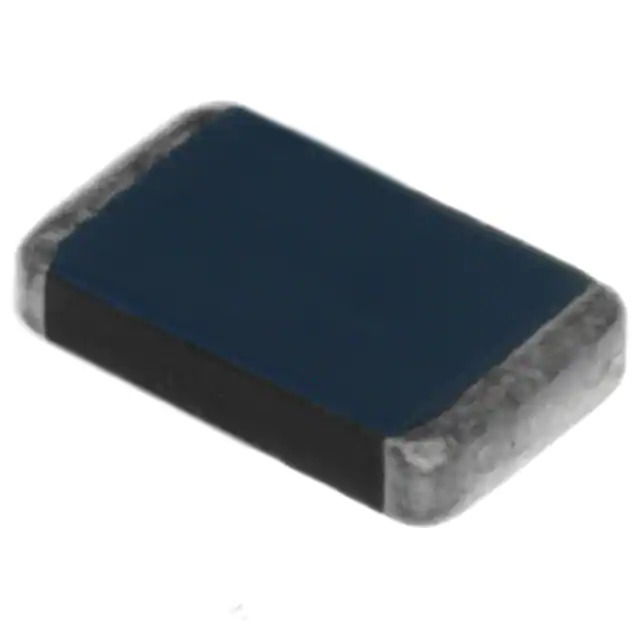

V56CH8T Littelfuse Inc.
Same model may have multiple batches, images only for reference.

V56CH8T

Part No V56CH8T
Manufacturer Littelfuse Inc.
Catalog TVS - Varistors, MOVs
Description VARISTOR 56V 100A 2SMD NO LEAD / 56 V 100 A Varistor 1 Circuit Surface Mount, MLCV 2-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - Varistors, MOVs
Mfr Littelfuse Inc.
Series CH
Package Tape & Reel
Product Status Active
Maximum AC Volts 35 V
Maximum DC Volts 45 V
Varistor Voltage (Min) 50 V
Varistor Voltage (Typ) 56 V
Varistor Voltage (Max) 62 V
Current - Surge 100 A
Energy 1.4J
Number of Circuits 1
Capacitance @ Frequency 600 pF @ 1 MHz
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting Type Surface Mount, MLCV
Package / Case 2-SMD, No Lead
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.4000
Win Source Part Number 1360911-V56CH8T
Ultra Librarian 3D Model Ultra Librarian V56CH8T CAD Model

Description

The 1360911-V56CH8T is a circuit protection component known as a Transient Voltage Suppressor (TVS) Varistor manufactured by Littelfuse Inc.

  • Series: CH
  • Package: 2-SMD, No Lead
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C to 125°C
  • Maximum AC Voltage: 35V
  • Maximum DC Voltage: 45V
  • Varistor Voltage: 50V to 62V
  • Surge Current: 100A
  • Energy Rating: 1.4J
  • Capacitance: 600pF @ 1MHz
