Same model may have multiple batches, images only for reference.

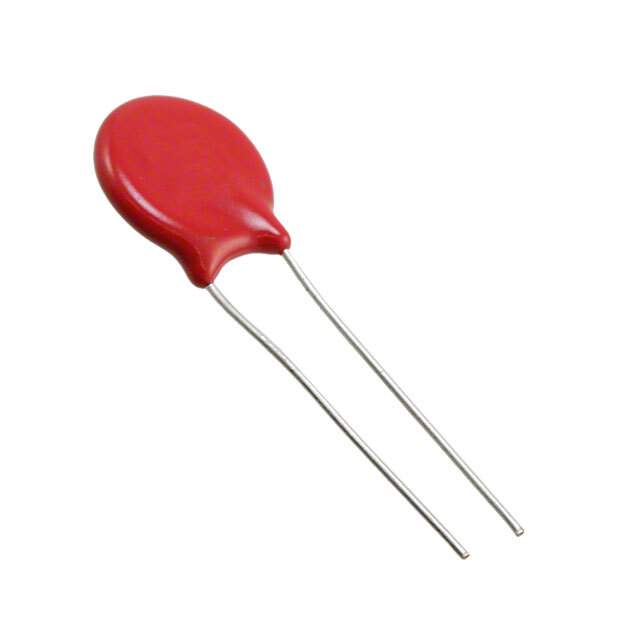

V56ZA8P Real Image
Same model may have multiple batches, images only for reference.

V56ZA8P

Part No V56ZA8P
Manufacturer Littelfuse Inc.
Catalog TVS - Varistors, MOVs
Description VARISTOR 56V 1KA DISC 14MM
Datasheet
V56ZA8P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Bulk
Status Active
Varistor Voltage (Min) 50.4V
Varistor Voltage (Typ) 56V
Varistor Voltage (Max) 61.6V
Current - Surge 1kA
Energy 10J
Number of Circuits 1
Maximum AC Volts 35VAC
Maximum DC Volts 45VDC
Capacitance @ Frequency 4840pF @ 1MHz
Temperature Range - Operating -55°C to 85°C (TA)
Mounting Through Hole
Dimension Disc 14mm
Win Source Part Number 125634-V56ZA8P
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian V56ZA8P CAD Model

Description

The Littelfuse Inc. 125634-V56ZA8P varistor is a circuit protection device that is designed to protect sensitive electronic equipment from voltage surges and transients.

  • Capacitance: 4840pF @ 1MHz
  • Varistor Voltage Range: 50.4V to 61.6V
  • Surge Current: up to 1kA
  • Maximum AC Voltage: 35VAC
  • Maximum DC Voltage: 45VDC
  • Energy Rating: 10J
  • Operating Temperature Range: -55°C to 85°C (TA)
  • Shape: disc-shaped 14mm
  • Suitable for: use in circuit protection applications.
