Same model may have multiple batches, images only for reference.

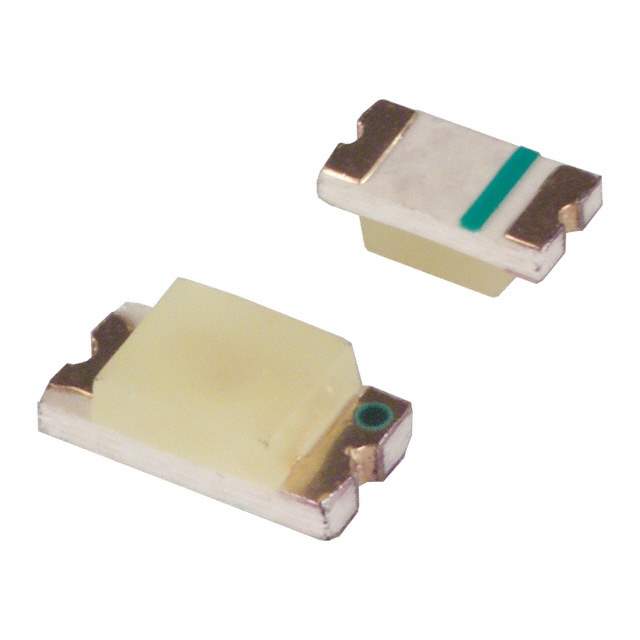

SML-LX1206SIC-TR Real Image
Same model may have multiple batches, images only for reference.

SML-LX1206SIC-TR

Part No SML-LX1206SIC-TR
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED RED CLEAR 1206 SMD / Red LED Indication - Discrete 2V 1206 (3216 Metric)
Datasheet
SML-LX1206SIC-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Lumex Opto/Components Inc.
Package Tape & Reel
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 54mcd
Lens Style Rectangle with Flat Top
Lens Size 2.00mm x 1.50mm
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Viewing Angle 130°
Mounting SMD (SMT)
Wavelength - Peak 632nm
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Dimension 3.20mm L x 1.60mm W
Height (Max) 1.10mm
Base Product Number SML-LX1206
Other Names Q7120670P,67-1695-1,67-1695-2,67-1695-2R,SMLLX1206SICTR,67-1695-1R,67-1695-6
Standard Package 3,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241845-SML-LX1206SIC-TR
Ultra Librarian 3D Model Ultra Librarian SML-LX1206SIC-TR CAD Model

Description

The SML-LX1206SIC-TR is an LED indication discrete component from Lumex Opto/Components Inc.

  • Mounting Type: Surface mount device (SMD)
  • Lens Style: Rectangular flat-top
  • Lens Color: Colorless
  • Lens Transparency: Clear
  • Lens Size: 2.00mm x 1.50mm
  • Height: 1.10mm
  • Millicandela Rating: 54mcd
  • Forward Voltage: 2V
  • Wavelength Peak: 632nm
  • Configuration: Standard
  • Package: Tape and reel
  • Standard Package: 3,000
  • REACH: Compliant and is unaffected
  • ECCN: EAR99
