Same model may have multiple batches, images only for reference.

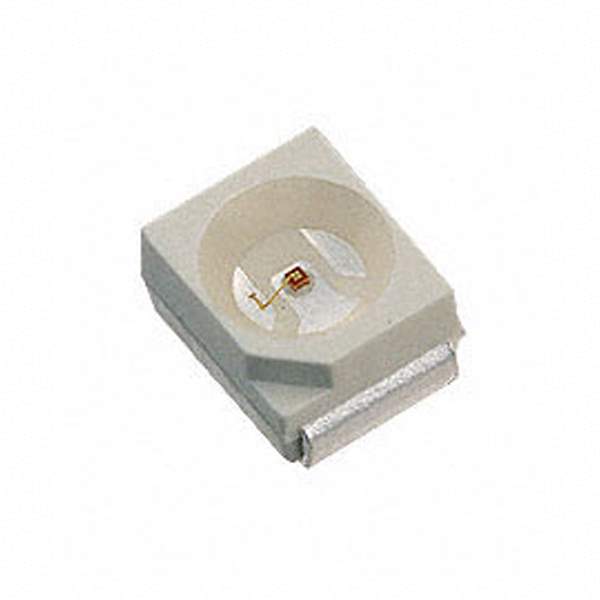

SML-LX2832UWC-TR Real Image
Same model may have multiple batches, images only for reference.

SML-LX2832UWC-TR

Part No SML-LX2832UWC-TR
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED WHITE CLEAR 2832 SMD / White LED Indication - Discrete 3.3V 2-PLCC
Datasheet
SML-LX2832UWC-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Lumex Opto/Components Inc.
Package Tape & Reel
Color White
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 690mcd
Lens Style Round with Flat Top
Lens Size 2.40mm Dia
Voltage - Forward (Vf) (Typ) 3.3V
Current - Test 20mA
Viewing Angle 120°
Mounting SMD (SMT)
Package / Case 2-PLCC
Supplier Device Package 2832
Dimension 3.20mm L x 2.80mm W
Height (Max) 2.10mm
Base Product Number SML-LX2832
Other Names SMLLX2832UWCTR,67-1608-6,67-1608-2R,67-1608-1,67-1608-1R,67-1608-2
Standard Package 2,000
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241839-SML-LX2832UWC-TR
Ultra Librarian 3D Model Ultra Librarian SML-LX2832UWC-TR CAD Model

Description

The SML-LX2832UWC-TR is a white LED indication discrete component from Lumex Opto/Components Inc.

  • Viewing Angle: 120 degrees
  • Lens Size: 2.40mm diameter
  • Package Type: Tape and reel
  • Height: 2.10mm
  • Millicandela Rating: 690mcd
  • Voltage-Forward (Vf): 3.3V @ 20mA
  • Lens Style: Round with a flat top
  • Lens Transparency: Clear
  • Configuration: Standard
  • Package: 2-PLCC
  • Supplier Device Package: 2832
  • Ideal for: Use in optoelectronics applications
