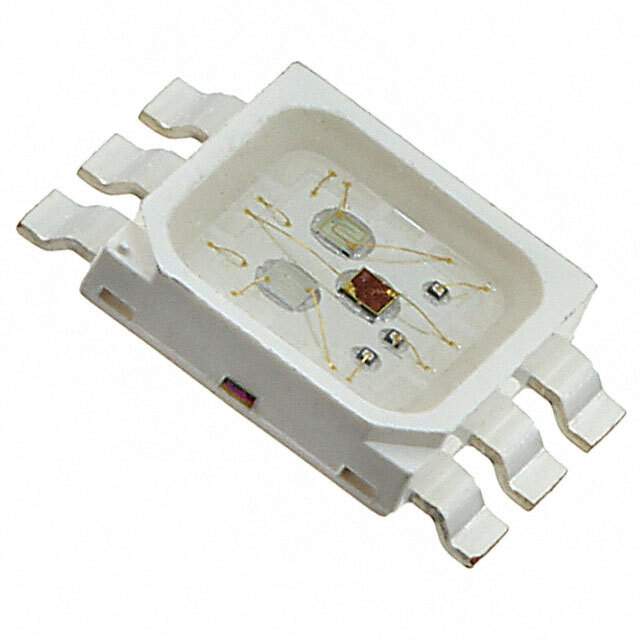

SML-LX5050SIUPGUBC Real Image
Same model may have multiple batches, images only for reference.

SML-LX5050SIUPGUBC

Part No SML-LX5050SIUPGUBC
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED RGB CLEAR 6PLCC SMD / Red, Green, Blue (RGB) LED Indication - Discrete 2.5V Red, 3.5V Green, 3.5V Blue 6-SMD, Gull Wing
Datasheet
SML-LX5050SIUPGUBC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Lumex Opto/Components Inc.
Package Tape & Reel
Color Red, Green, Blue (RGB)
Configuration Common Anode
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 3200mcd Red, 6300mcd Green, 1500mcd Blue
Lens Style Square with Flat Top
Lens Size 4.25mm
Voltage - Forward (Vf) (Typ) 2.5V Red, 3.5V Green, 3.5V Blue
Current - Test 150mA Red, 150mA Green, 150mA Blue
Viewing Angle 120°
Mounting SMD (SMT)
Wavelength - Peak 636nm Red, 525nm Green, 470nm Blue
Package / Case 6-SMD, Gull Wing
Supplier Device Package 6-PLCC
Dimension 5.00mm L x 5.00mm W
Height (Max) 1.30mm
Base Product Number SML-LX5050
Other Names 67-2233-2,67-2233-1,67-2233-6
Standard Package 500
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241869-SML-LX5050SIUPGUBC
Ultra Librarian 3D Model Ultra Librarian SML-LX5050SIUPGUBC CAD Model

Description

The SML-LX5050SIUPGUBC is an RGB LED indication discrete component from Lumex Opto/Components Inc.

  • Lens Transparency: Clear
  • Lens Style: Square flat top
  • Viewing Angle: 120 degrees
  • Millicandela Rating: 3200mcd for red, 6300mcd for green, and 1500mcd for blue
  • Voltage: 2.5V for red, 3.5V for green, and 3.5V for blue (forward bias)
  • Current: 150mA for all colors (typical)
  • Wavelength Peak: 636nm for red, 525nm for green, and 470nm for blue
  • Mounting: Surface-mount
  • Package/Case: 6-SMD gull-wing with a dimension of 5.00mm length x 5.00mm width
  • Lens Size: 4.25mm
  • Ideal for: Use in optoelectronics applications that require an RGB LED with a square flat top lens style
