Same model may have multiple batches, images only for reference.

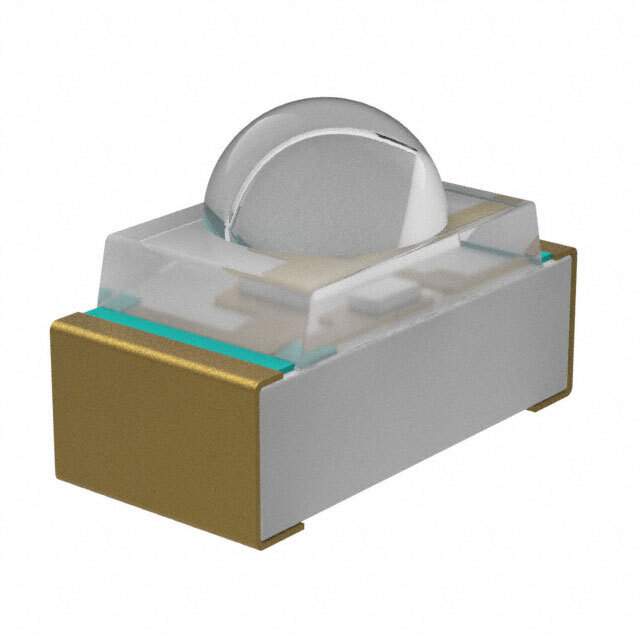

SML-LXIL0603SYC-TR Real Image
Same model may have multiple batches, images only for reference.

SML-LXIL0603SYC-TR

Part No SML-LXIL0603SYC-TR
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description 1.64X0.84X1.15MM TOP VIEW SMT LE / Yellow LED Indication - Discrete 2.1V 0603 (1608 Metric)
Datasheet
SML-LXIL0603SYC-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Lumex Opto/Components Inc.
Package Tape & Reel
Color Yellow
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 1350mcd
Lens Style Round with Domed Top
Lens Size 0.79mm Dia
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 20mA
Viewing Angle 75°
Mounting SMD (SMT)
Wavelength - Peak 585nm
Package / Case 0603 (1608 Metric)
Dimension 1.64mm L x 0.84mm W
Height (Max) 1.40mm
Base Product Number SML-LXIL0603
Other Names 67-2335-1,67-2335-2,67-2335-6
Standard Package 3,000
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241838-SML-LXIL0603SYC-TR
Ultra Librarian 3D Model Ultra Librarian SML-LXIL0603SYC-TR CAD Model

Description

The Lumex Opto/Components Inc. SML-LXIL0603SYC-TR is an optoelectronics LED indication - discrete product.

  • Viewing Angle: 75°
  • Millicandela Rating: 1350mcd
  • Voltage - Forward (Vf) (Typ): 2.1V
  • Current - Test: 20mA
  • Color: Yellow
  • Package: Tape & reel
  • Standard Package: 3,000
  • Mounting: SMD (SMT)
  • MSL Level: 2 (1 year)
  • REACH Status: REACH unaffected
  • HTSUS: 8541.41.0000
  • Manufacturer: Lumex Opto/Components Inc.
  • Other Names: 67-2335-1, 67-2335-2, and 67-2335-6
