SML-LXIL2324SIC-TR Real Image
Same model may have multiple batches, images only for reference.

SML-LXIL2324SIC-TR

Part No SML-LXIL2324SIC-TR
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED 625NM RED WTR CLR 6MM SQ SMD / Red 625nm LED Indication - Discrete 2.2V 2423 (6058 Metric)
Datasheet
SML-LXIL2324SIC-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Lumex Opto/Components Inc.
Package Cut Tape (CT),
Product Status Obsolete
Color Red
Millicandela Rating 25000mcd
Voltage - Forward (Vf) (Typ) 2.2V
Current - Test 30mA
Viewing Angle 16°
Mounting SMD (SMT)
Wavelength - Dominant 625nm
Wavelength - Peak 625nm
Package / Case 2423 (6058 Metric)
Supplier Device Package 2324

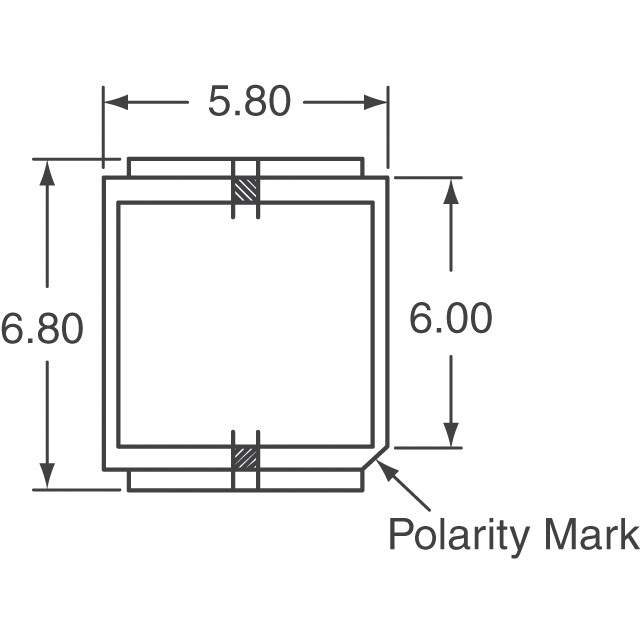

Dimension 6.00mm L x 5.80mm W
Height (Max) 2.90mm
Other Names 67-2079-2,67-2079-1,SMLLXIL2324SICTR,67-2079-6
Standard Package 500
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241913-SML-LXIL2324SIC-TR
Ultra Librarian 3D Model Ultra Librarian SML-LXIL2324SIC-TR CAD Model

Description

The Lumex Opto/Components Inc. LED Indication - Discrete is a red LED with a viewing angle of 16 degrees.

  • Viewing Angle: 16°
  • Millicandela Rating: 25000mcd
  • Voltage Rating: 2.2V
  • Mounting Type: Surface Mount
  • Standard Package: 500
  • MSL Level: 4 (72 Hours)
  • REACH: Unaffected
  • HTSUS: 8541.41.0000
  • Dimension: 6.00mm L x 5.80mm W
  • Lens Size: 3mm, T-1
  • Other Names: 67-2079-2, 67-2079-1, SMLLXIL2324SICTR, 67-2079-6
