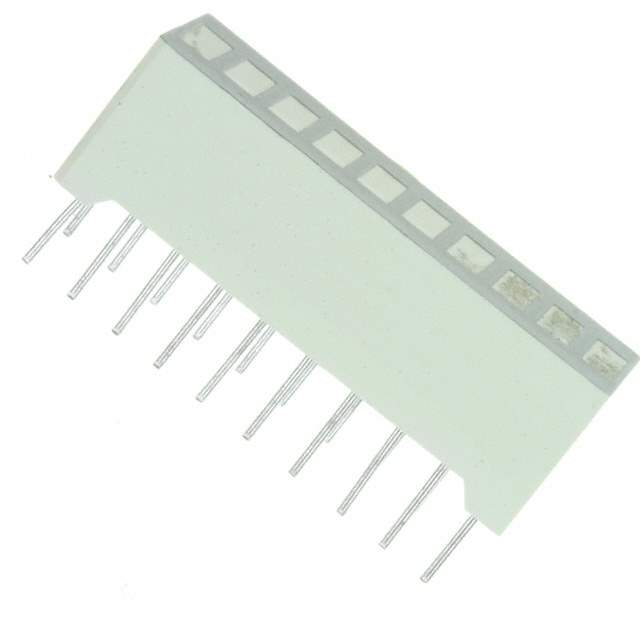

SSA-LXB10GW-GF Real Image
Same model may have multiple batches, images only for reference.

SSA-LXB10GW-GF

Part No SSA-LXB10GW-GF
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED ARRAY 1.78X5MM 565NM GRN WHT / LED Circuit Board Indicator LED Circuit Board Indicator Bar - 10 Wide, DIP Green (x 10) Diffused, White 2.2V 25mA Rectangle with Flat Top 5.00mm x 1.74mm Through Hole
Datasheet
SSA-LXB10GW-GF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Green (x 10)
Wavelength - Peak 565nm
Configuration Bar - 10 Wide, DIP
Current 25mA
Millicandela Rating 8mcd
Viewing Angle 160°
Lens Type Diffused, White
Lens Style Rectangle with Flat Top
Lens Size 5.00mm x 1.74mm
Voltage Rating 2.2V
Mounting Type Through Hole
Base Product Number SSA-LXB10
Other Names SSA-LXB10GW-GFR,Q5056042HL
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238249-SSA-LXB10GW-GF
Ultra Librarian 3D Model Ultra Librarian SSA-LXB10GW-GF CAD Model

Description

The SSA-LXB10GW-GF is a green LED circuit board indicator, array, light bar, bar graph optoelectronic component manufactured by Lumex Opto/Components Inc.

  • Packaging: Bulk
  • Standard Package: 20
  • Voltage Rating: 2.2V
  • Millicandela Rating: 8mcd
  • Peak Wavelength: 565nm
  • Viewing Angle: 160 degrees
  • Lens Type: Diffused and White
  • Mounting Type: Through-Hole
  • Lens Style: Rectangle with a Flat Top
  • Lens Size: 5.00mm x 1.74mm
