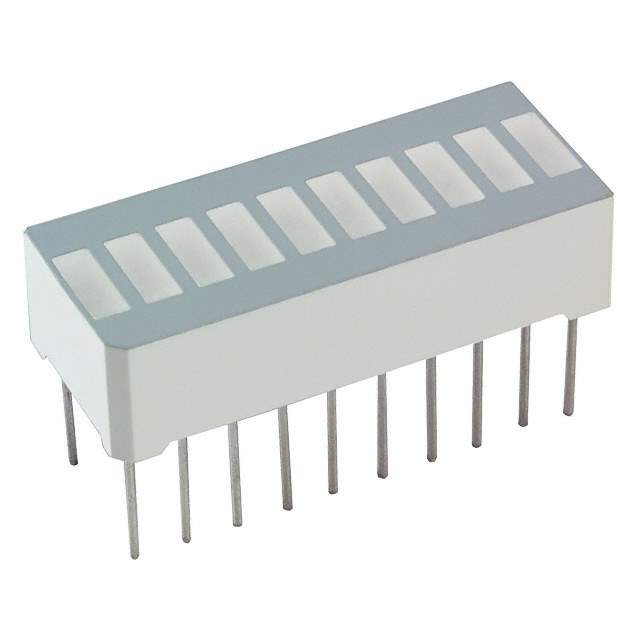

SSA-LXB10IW-GF/LP Real Image
Same model may have multiple batches, images only for reference.

SSA-LXB10IW-GF/LP

Part No SSA-LXB10IW-GF/LP
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED ARRAY 10X25MM 10SEG RED DIFF / LED Circuit Board Indicator LED Circuit Board Indicator Bar - 10 Wide, DIP Red (x 10) Diffused, Tinted 2V 30mA Rectangle with Flat Top 5.08mm x 1.74mm Through Hole
Datasheet
SSA-LXB10IW-GF/LP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Red (x 10)
Wavelength - Peak 635nm
Configuration Bar - 10 Wide, DIP
Current 30mA
Millicandela Rating 8mcd
Viewing Angle 160°
Lens Type Diffused, Tinted
Lens Style Rectangle with Flat Top
Lens Size 5.08mm x 1.74mm
Voltage Rating 2V
Mounting Type Through Hole
Base Product Number SSA-LXB10
Other Names 67-1010R,67-1010,SSALXB10IWGFLP
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238206-SSA-LXB10IW-GF/LP
Ultra Librarian 3D Model Ultra Librarian SSA-LXB10IW-GF/LP CAD Model

Description

The SSA-LXB10IW-GF/LP is a bar graph LED manufactured by Lumex Opto/Components.

  • Configuration: 10 red LEDs arranged in a bar configuration
  • Package: through-hole package
  • Viewing Angle: 160°
  • Peak Wavelength: 635 nm
  • Millicandela Rating: 8 mcd
  • Maximum Current: 30 mA
