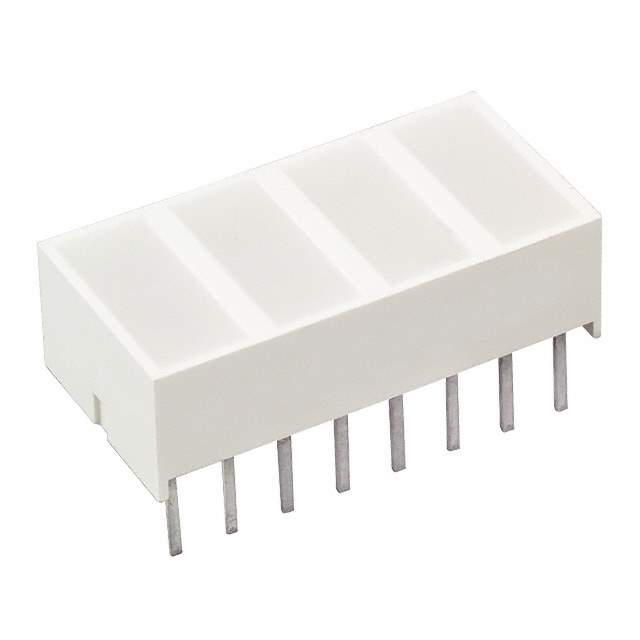

SSB-LX2620IW Real Image
Same model may have multiple batches, images only for reference.

SSB-LX2620IW

Part No SSB-LX2620IW
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED LTBAR 4WINDOW 8CHIP RED DIFF / LED Circuit Board Indicator LED Circuit Board Indicator Bar - 4 Wide, DIP Red (x 4) Diffused, White 2.1V 30mA Rectangle with Flat Top Through Hole
Datasheet
SSB-LX2620IW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Tube
Color Red (x 4)
Wavelength - Peak 636nm
Configuration Bar - 4 Wide, DIP
Current 30mA
Millicandela Rating 25mcd
Viewing Angle 160°
Lens Type Diffused, White
Lens Style Rectangle with Flat Top
Voltage Rating 2.1V
Mounting Type Through Hole
Base Product Number SSB-LX2620
Other Names SSBLX2620IW,67-1019R,67-1019
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238074-SSB-LX2620IW
Ultra Librarian 3D Model Ultra Librarian SSB-LX2620IW CAD Model

Description

The SSB-LX2620IW is a bar graph LED from Lumex Opto/Components Inc.

  • Viewing Angle: 160 degrees
  • Peak Wavelength: 636nm
  • Millicandela Rating: 25mcd
  • Current Rating: 30mA
  • Voltage Rating: 2.1V
  • RoHS Compliant: Yes
  • Standard Package: 25
