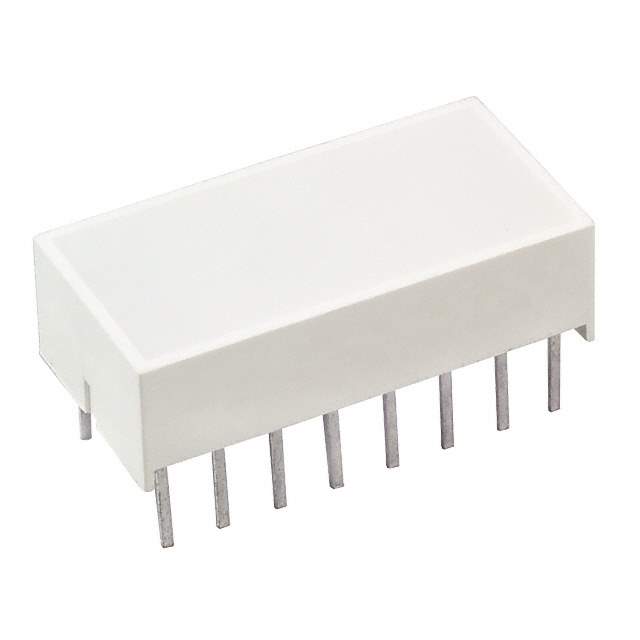

SSB-LX2785YW Real Image
Same model may have multiple batches, images only for reference.

SSB-LX2785YW

Part No SSB-LX2785YW
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED LTBAR 10X20MM 8CHIP YEL DIFF / LED Circuit Board Indicator LED Circuit Board Indicator Bar - Single, DIP Yellow Diffused, White 2.1V 30mA Rectangle with Flat Top 20.00mm x 10.00mm Through Hole
Datasheet
SSB-LX2785YW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Yellow
Wavelength - Peak 585nm
Configuration Bar - Single, DIP
Current 30mA
Millicandela Rating 70mcd
Viewing Angle 160°
Lens Type Diffused, White
Lens Style Rectangle with Flat Top
Lens Size 20.00mm x 10.00mm
Voltage Rating 2.1V
Mounting Type Through Hole
Base Product Number SSB-LX2785
Other Names SSBLX2785YW,67-1027,67-1027R
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238133-SSB-LX2785YW
Ultra Librarian 3D Model Ultra Librarian SSB-LX2785YW CAD Model

Description

The SSB-LX2785YW is a yellow LED circuit board indicator from Lumex Opto/Components Inc.

  • Viewing Angle: 160 degrees
  • Lens Size: 20.00mm x 10.00mm
  • Voltage Rating: 2.1V
  • Current: 30mA
  • Millicandela Rating: 70mcd
  • Peak Wavelength: 585nm
  • Lens Color: Yellow
  • Lens Transparency: Diffused
  • Configuration: Single bar DIP
  • Package: Bulk
  • Standard Package: Includes 25 LEDs
  • Use: Ideal for use in optoelectronics and light bars
