Same model may have multiple batches, images only for reference.

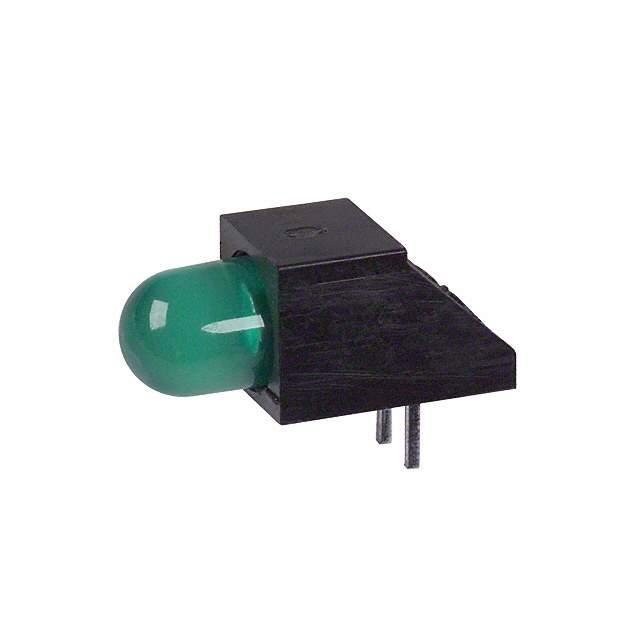

SSF-LXH100GD-01 Real Image
Same model may have multiple batches, images only for reference.

SSF-LXH100GD-01

Part No SSF-LXH100GD-01
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 5MM RA GREEN DIFF PC MOUNT / LED Circuit Board Indicator LED Circuit Board Indicator Single Green Diffused, Tinted 2.2V 20mA Round with Domed Top 5mm, T-1 3/4 Through Hole, Right Angle
Datasheet
SSF-LXH100GD-01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Green
Wavelength - Peak 565nm
Configuration Single
Current 20mA
Millicandela Rating 30mcd
Viewing Angle 60°
Lens Type Diffused, Tinted
Lens Style Round with Domed Top
Lens Size 5mm, T-1 3/4
Voltage Rating 2.2V
Mounting Type Through Hole, Right Angle
Base Product Number SSF-LXH100
Other Names 67-1310,LU20375,67-1310R,SSFLXH100GD01,SSF-LXH100GD-1
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238214-SSF-LXH100GD-01
Ultra Librarian 3D Model Ultra Librarian SSF-LXH100GD-01 CAD Model

Description

The SSF-LXH100GD-01 is a diffused, tinted LED manufactured by Lumex Opto/Components Inc.

  • Category: Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
  • Color: Green
  • Viewing Angle: 60°
  • Millicandela Rating: 30mcd
  • Wavelength Peak: 565nm
  • Current: 20mA
  • Voltage Rating: 2.2V
  • Mounting Type: Through Hole, Right Angle
  • Lens Style: Round with Domed Top
  • Lens Size: 5mm, T-1 3/4
  • Market Status: Open Market
