Same model may have multiple batches, images only for reference.

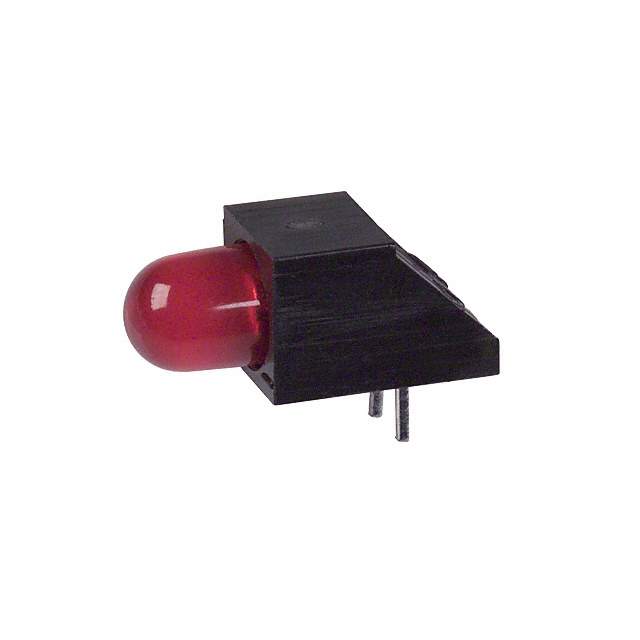

SSF-LXH100LID-01 Real Image
Same model may have multiple batches, images only for reference.

SSF-LXH100LID-01

Part No SSF-LXH100LID-01
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 5MM RA LOWCUR RED PC MOUNT / LED Circuit Board Indicator LED Circuit Board Indicator Single Red Diffused, Tinted 2V 20mA Round with Domed Top 5mm, T-1 3/4 Through Hole, Right Angle
Datasheet
SSF-LXH100LID-01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Red
Configuration Single
Current 20mA
Lens Type Diffused, Tinted
Lens Style Round with Domed Top
Lens Size 5mm, T-1 3/4
Voltage Rating 2V
Mounting Type Through Hole, Right Angle
Base Product Number SSF-LXH100
Other Names 67-1312,SSF-LXH100LID-1,SSFLXH100LID01,SSF-LXH100L1D-1,67-1312R,LU20381
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238178-SSF-LXH100LID-01
Ultra Librarian 3D Model Ultra Librarian SSF-LXH100LID-01 CAD Model

Description

The SSF-LXH100LID-01 from Lumex Opto/Components Inc. is a red LED with a diffused, tinted lens.

  • Manufacturer: Lumex Opto/Components Inc.
  • Color: Red
  • Lens: Diffused, tinted
  • Voltage Rating: 2V
  • Current: 20mA
  • Package: Bulk
  • Standard Package: 500
  • Viewing Angle: Unspecified
  • Millicandela Rating: Unspecified
  • Peak Wavelength: Unspecified
