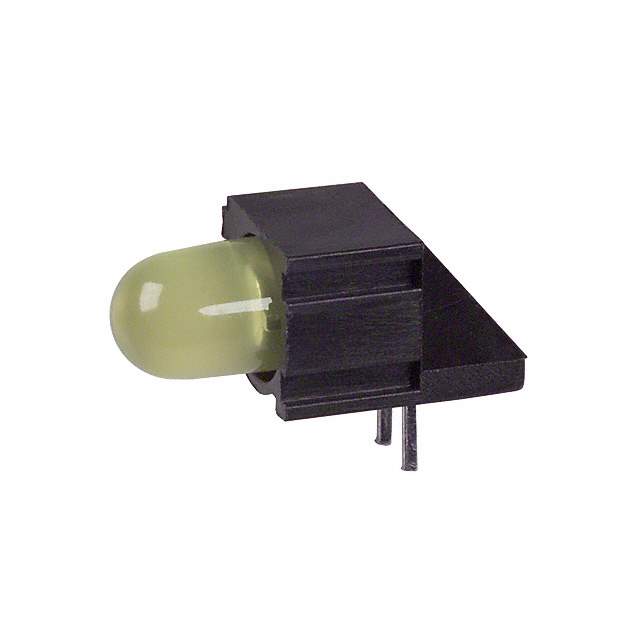

SSF-LXH100MYD Real Image
Same model may have multiple batches, images only for reference.

SSF-LXH100MYD

Part No SSF-LXH100MYD
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 5MM RA MATING YELLOW PC MNT / LED Circuit Board Indicator LED Circuit Board Indicator Single Yellow Diffused, Tinted 2.1V 20mA Round with Domed Top 5mm, T-1 3/4 Through Hole, Right Angle
Datasheet
SSF-LXH100MYD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Yellow
Wavelength - Peak 585nm
Configuration Single
Current 20mA
Millicandela Rating 30mcd
Viewing Angle 60°
Lens Type Diffused, Tinted
Lens Style Round with Domed Top
Lens Size 5mm, T-1 3/4
Voltage Rating 2.1V
Mounting Type Through Hole, Right Angle
Base Product Number SSF-LXH100
Other Names LU20087,67-1229,SSFLXH100MYD,6558695A,67-1229R
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238124-SSF-LXH100MYD
Ultra Librarian 3D Model Ultra Librarian SSF-LXH100MYD CAD Model

Description

The SSF-LXH100MYD is a yellow LED circuit board indicator from Lumex Opto/Components Inc.

  • Lens Type: Diffused, tinted
  • Viewing Angle: 60-degree
  • Millicandela Rating: 30mcd
  • Peak Wavelength: 585nm
  • Operating Current: 20mA
  • Voltage Rating: 2.1V
  • Mounting Type: Round, right-angle
  • Supplier Device Package: T-1 3/4
  • Packaging: Bulk
  • Standard Package: 500
  • ECCN: EAR99
  • HTSUS: 8541.41.0000
  • Application: LED circuit board indicator applications
