Same model may have multiple batches, images only for reference.

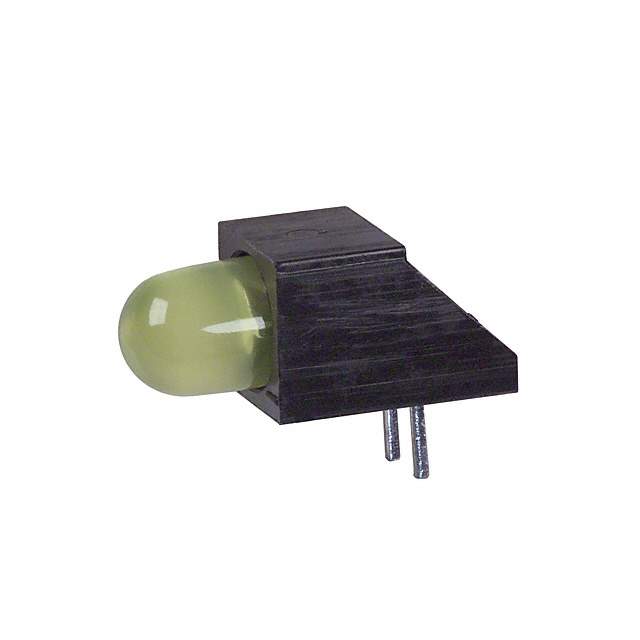

SSF-LXH100YD-01 Real Image
Same model may have multiple batches, images only for reference.

SSF-LXH100YD-01

Part No SSF-LXH100YD-01
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 5MM RA FAULT-IND YEL PC MNT / LED Circuit Board Indicator LED Circuit Board Indicator Single Yellow Diffused, Tinted 2.1V 20mA Round with Domed Top 5mm, T-1 3/4 Through Hole, Right Angle
Datasheet
SSF-LXH100YD-01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Yellow
Wavelength - Peak 585nm
Configuration Single
Current 20mA
Millicandela Rating 30mcd
Viewing Angle 60°
Lens Type Diffused, Tinted
Lens Style Round with Domed Top
Lens Size 5mm, T-1 3/4
Voltage Rating 2.1V
Mounting Type Through Hole, Right Angle
Base Product Number SSF-LXH100
Other Names LU20377,SSF-LXH100YD-1,67-1311,67-1311R,SSFLXH100YD01
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238125-SSF-LXH100YD-01
Ultra Librarian 3D Model Ultra Librarian SSF-LXH100YD-01 CAD Model

Description

The Lumex Opto/Components Inc. SSF-LXH100YD-01 is a yellow LED that is used in optoelectronics.

  • MSL Level: 1 (Unlimited)
  • Standard Package: 500
  • Voltage Rating: 2.1V
  • Millicandela Rating: 30mcd
  • Viewing Angle: 60°
  • Lens Type: Diffused, tinted
  • Manufacturer: Lumex Opto/Components Inc.
  • Win Source Part Number: 1238125-SSF-LXH100YD-01
