Same model may have multiple batches, images only for reference.

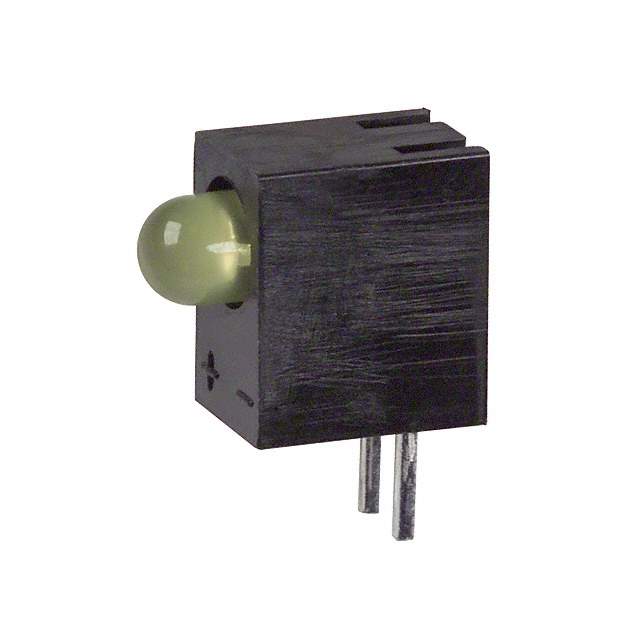

SSF-LXH103YD Real Image
Same model may have multiple batches, images only for reference.

SSF-LXH103YD

Part No SSF-LXH103YD
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 3MM RA FAULT-IND YEL PC MNT / LED Circuit Board Indicator LED Circuit Board Indicator Single Yellow Diffused, Tinted 2.1V 20mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
Datasheet
SSF-LXH103YD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Yellow
Wavelength - Peak 585nm
Configuration Single
Current 20mA
Millicandela Rating 30mcd
Viewing Angle 60°
Lens Type Diffused, Tinted
Lens Style Round with Domed Top
Lens Size 3mm, T-1
Voltage Rating 2.1V
Mounting Type Through Hole, Right Angle
Base Product Number SSF-LXH103
Other Names 67-1237R,SSFLXH103YD,Q16180641,LU20117,67-1237
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238126-SSF-LXH103YD
Ultra Librarian 3D Model Ultra Librarian SSF-LXH103YD CAD Model

Description

The SSF-LXH103YD is a yellow LED from Lumex Opto/Components Inc.

  • Category: Optoelectronics
  • Application: Circuit board indicator, array, light bar, or bar graph
  • Viewing Angle: 60 degrees
  • Millicandela Rating: 30mcd
  • Operating Current: 20mA
  • Voltage Rating: 2.1V
  • Package: Bulk package of 500
  • Lens Type: Diffused, tinted
  • Mounting: Through-hole
  • Mounting Type: Right-angle
  • Lens Style: Round with a domed top
  • Lens Size: 3mm, T-1
  • REACH: REACH unaffected
  • HTSUS: 8541.41.0000
