Same model may have multiple batches, images only for reference.

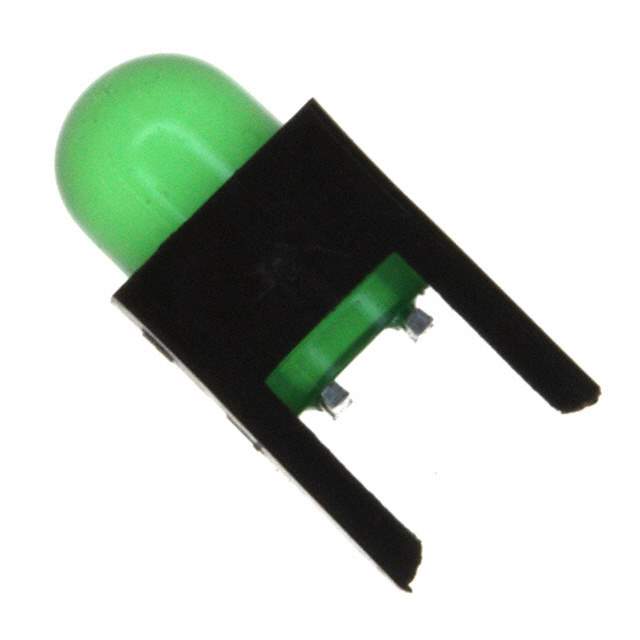

SSF-LXH104GD Real Image
Same model may have multiple batches, images only for reference.

SSF-LXH104GD

Part No SSF-LXH104GD
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 5MM RA FAULT-IND GREEN PCMT / LED Circuit Board Indicator LED Circuit Board Indicator Single Green Diffused, Tinted 2.2V 20mA Round with Domed Top 5mm, T-1 3/4 Through Hole, Right Angle
Datasheet
SSF-LXH104GD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Green
Wavelength - Peak 565nm
Configuration Single
Current 20mA
Millicandela Rating 30mcd
Viewing Angle 60°
Lens Type Diffused, Tinted
Lens Style Round with Domed Top
Lens Size 5mm, T-1 3/4
Voltage Rating 2.2V
Mounting Type Through Hole, Right Angle
Base Product Number SSF-LXH104
Other Names 67-1037,SSFLXH104GD,67-1037R
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238215-SSF-LXH104GD
Ultra Librarian 3D Model Ultra Librarian SSF-LXH104GD CAD Model

Description

The SSF-LXH104GD is a green LED designed for use in circuit board indicators, arrays, light bars, and bar graphs.

  • Package: Bulk
  • Standard Package: 500 units
  • Voltage Rating: 2.2V
  • Current: 20mA
  • Viewing Angle: 60 degrees
  • Millicandela Rating: 30mcd
  • Wavelength-Peak: 565nm
  • Lens Type: Diffused, Tinted
  • Mounting Type: Through-Hole, Right-Angle
  • Lens Style: Round with a Domed Top
  • Lens Size: 5mm, T-1 3/4
  • HTSUS Code: 8541.41.0000
  • Manufacturer: Lumex Opto/Components Inc.
