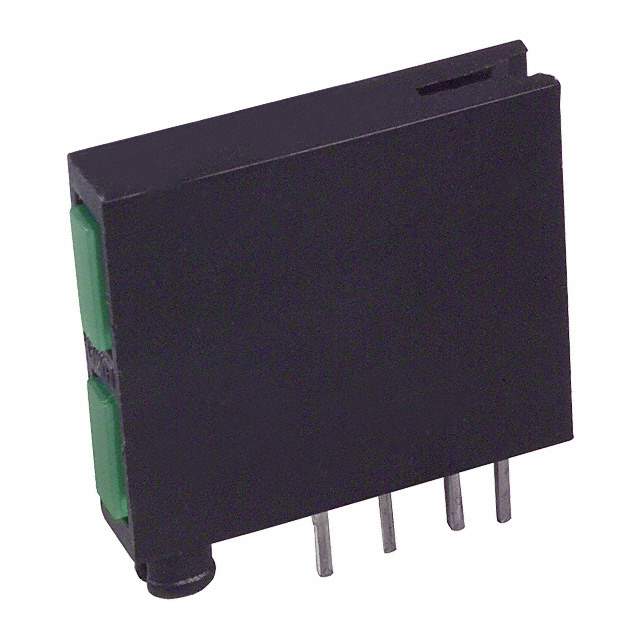

SSF-LXH22573LGGD Real Image
Same model may have multiple batches, images only for reference.

SSF-LXH22573LGGD

Part No SSF-LXH22573LGGD
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 2X5MM RA 2-HI GRN LO-I PCMT / LED Circuit Board Indicator LED Circuit Board Indicator Bar - 2 High, SIP Green (x 2) Diffused, Tinted 2.2V 20mA Rectangle with Flat Top 5.00mm x 2.00mm Through Hole, Right Angle
Datasheet
SSF-LXH22573LGGD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Green (x 2)
Wavelength - Peak 565nm
Configuration Bar - 2 High, SIP
Current 20mA
Millicandela Rating 10mcd
Viewing Angle 80°
Lens Type Diffused, Tinted
Lens Style Rectangle with Flat Top
Lens Size 5.00mm x 2.00mm
Voltage Rating 2.2V
Mounting Type Through Hole, Right Angle
Base Product Number SSF-LXH22573
Other Names 67-1267,LU20225,SSFLXH22573LGGD,67-1267R,LU20225L,NP420-DN1-4.0-47
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238243-SSF-LXH22573LGGD
Ultra Librarian 3D Model Ultra Librarian SSF-LXH22573LGGD CAD Model

Description

The Lumex Opto/Components Inc. SSF-LXH22573LGGD is a green LED bar that features a diffused and tinted lens.

  • Viewing Angle: 80 degrees
  • Peak Wavelength: 565nm
  • Configuration: 2 high, SIP
  • Millicandela Rating: 10mcd
  • Voltage Rating: 2.2V
  • Current: 20mA
  • Lens Style: Rectangle with a flat top
  • Lens Size: 5.00mm x 2.00mm
  • Package Type: Through-hole, right-angle
  • Packaging: Bulk
  • Compliance: EAR99 compliant
  • REACH Status: Unaffected by REACH
  • Ideal for: Use in various applications
